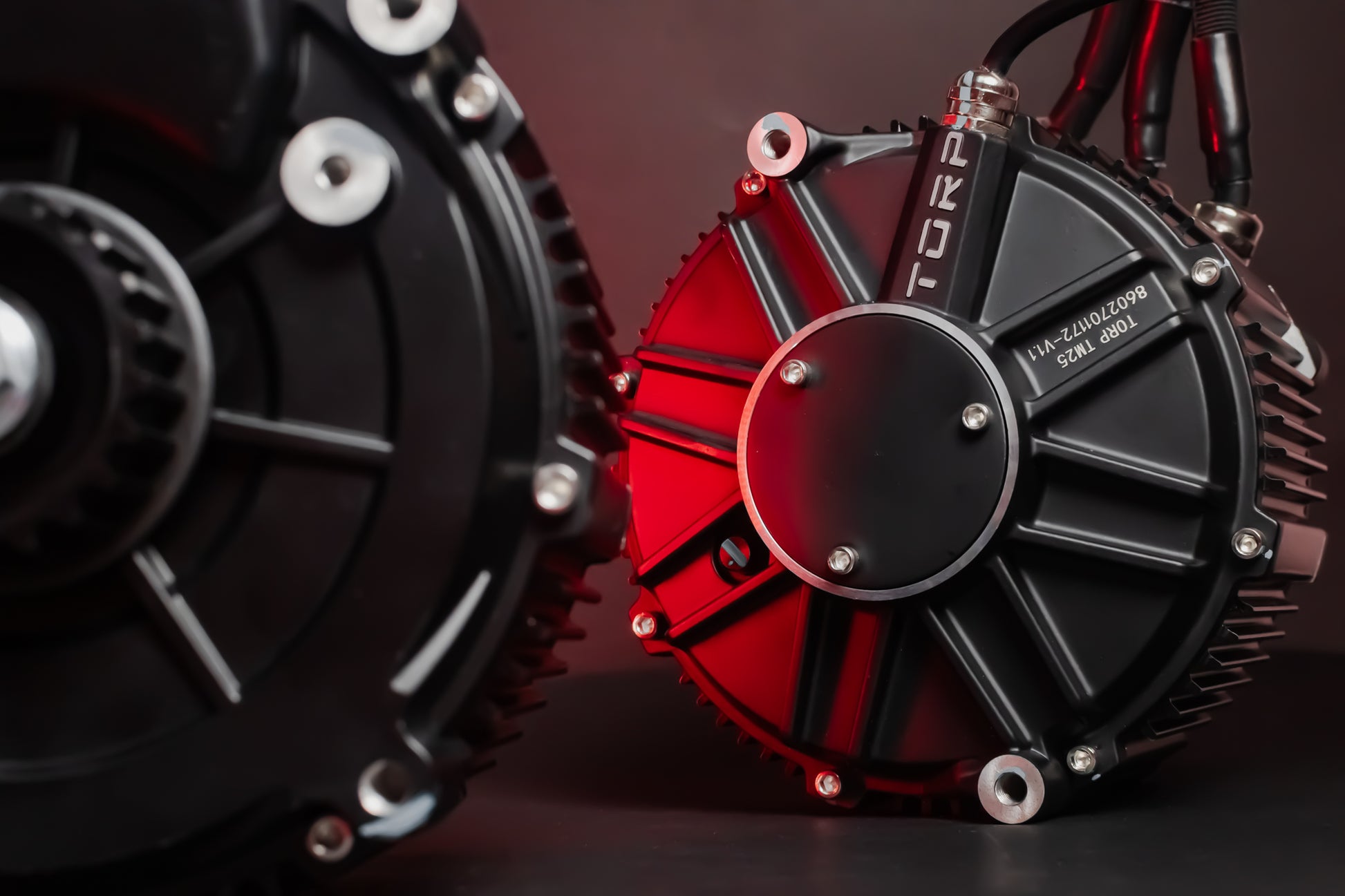

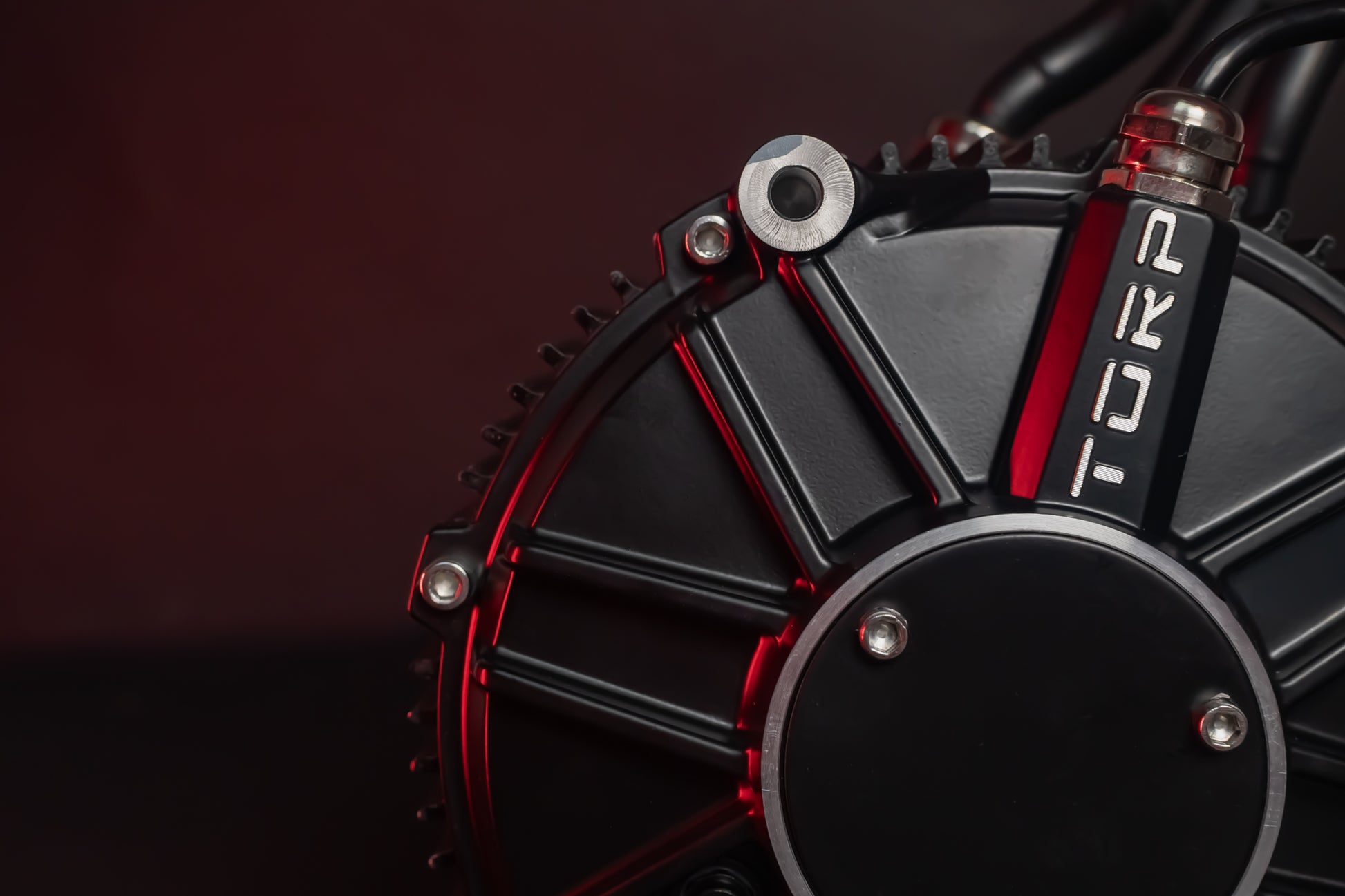

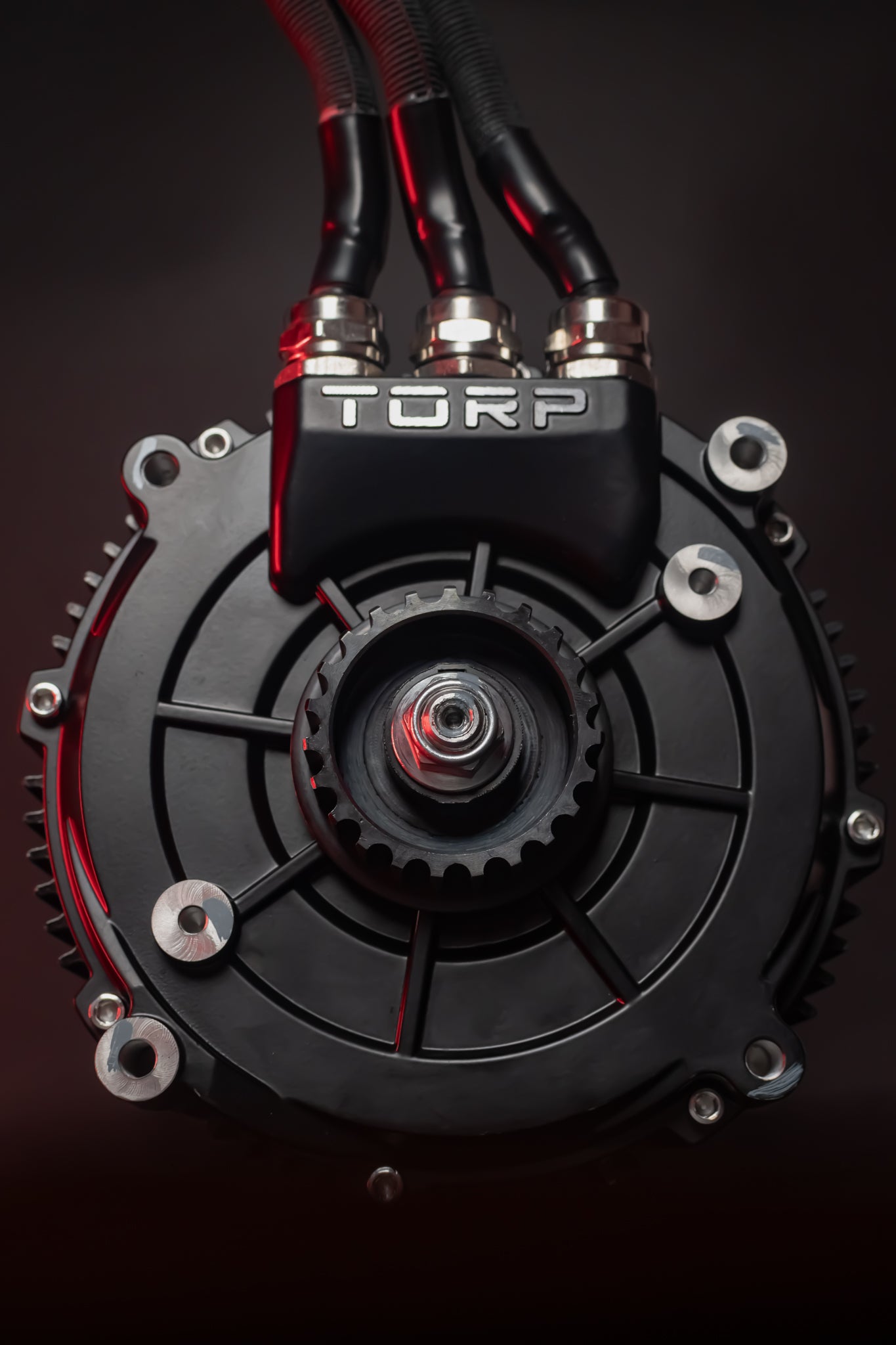

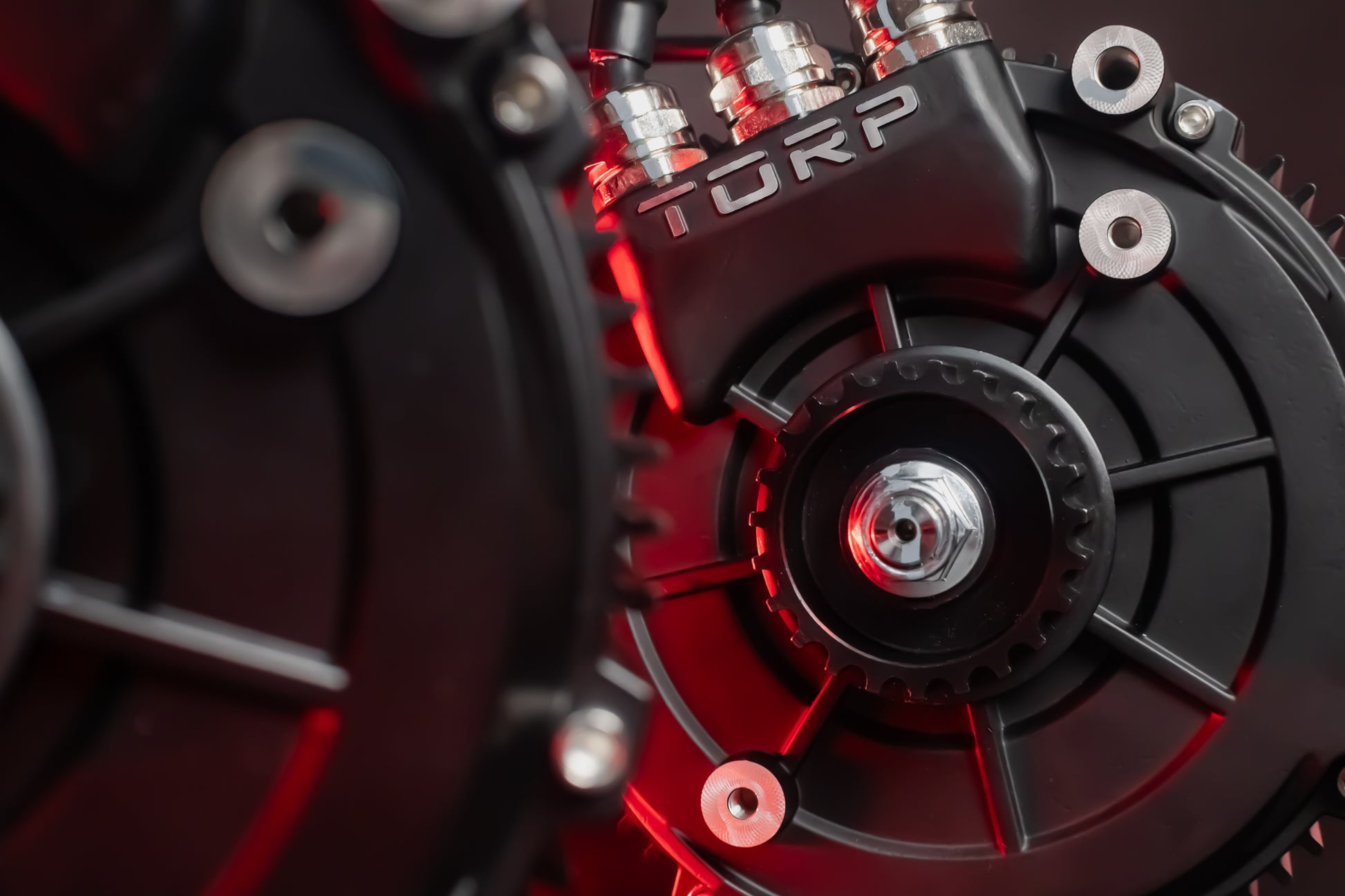

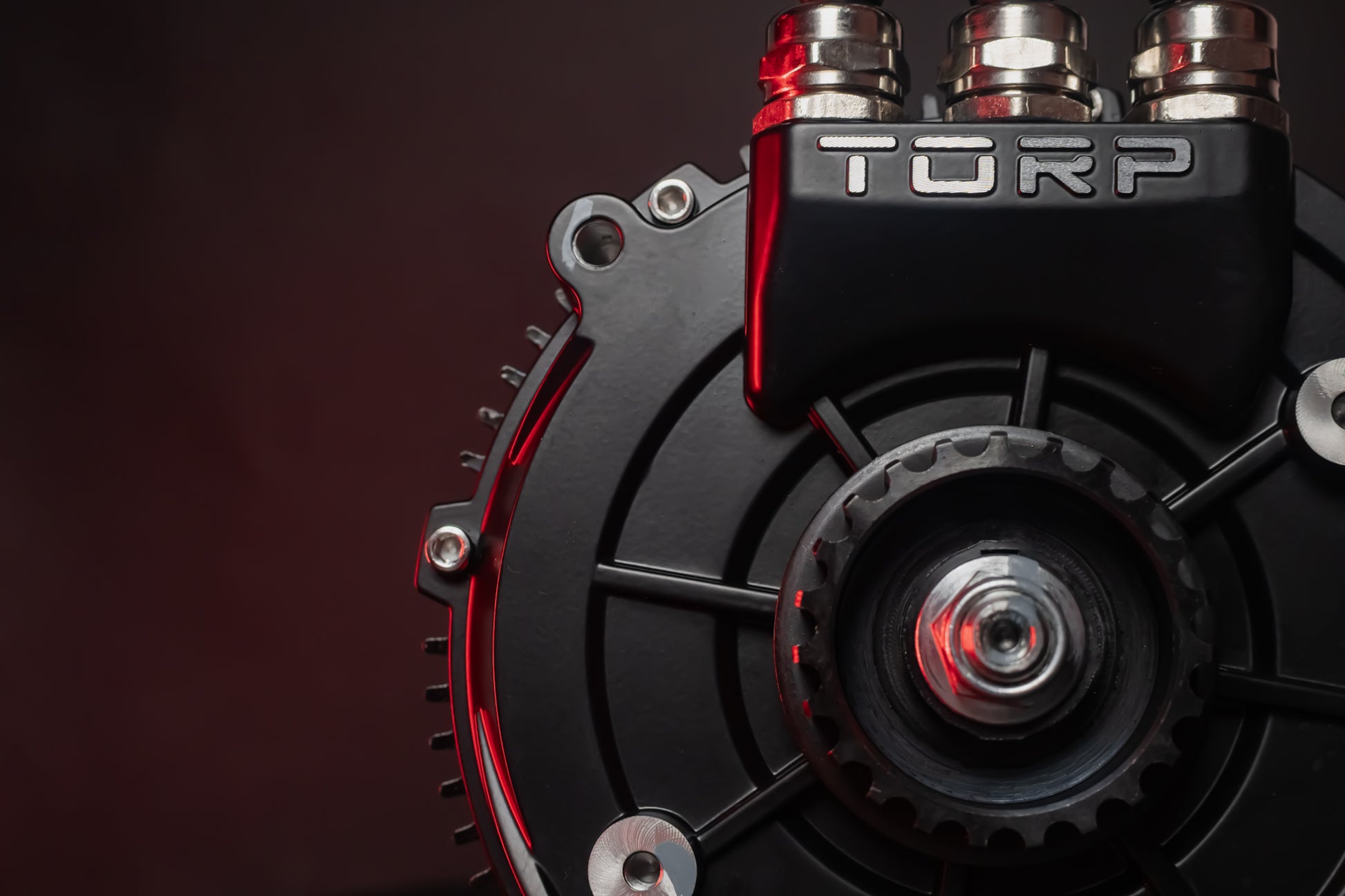

TORP TM25 motor

Torp TM25 Motor

POWERFUL, LIGHTWEIGHT AND AFFORDABLE

The Torp TM25 motor is the best upgrade for your Sur-Ron Light Bee motorcycle.

VERSATILE MOUNTING

Various mounting points allow this motor to be used in other electric vehicles.

COMPATIBLE WITH DIFFERENT CONTROLLERS

Works with both Hall sensors and encoders – suitable for use with different controllers (Hall – with third-party controllers, encoder – with Torp controllers).

3 TIMES LOWER RESISTANCE

It has 3 times lower resistance compared to the stock Sur-Ron motor – for more efficient power transfer.

CONTROLLER COMPATIBILITY

Compatible with TC500* 1.X/2.X and TC1000 1.X/2.X controllers.

IMPORTANT: The TM25 motor is NOT compatible with Torp TC500 controller, HW 1.0, 1.1 and 1.2 versions. The HW version of the controller is indicated on the silver sticker on the side of the controller. If you have one of these versions and want to purchase a TM25 motor, please contact us directly.

LEGAL NOTICE

Modifying a production electric vehicle may mean that the vehicle no longer meets local road safety requirements. Before modifying your vehicle, it is essential to consult with specialists or responsible authorities regarding compliance requirements.

SPECIFICATIONS

Motor type: IPM
Voltage: 48–120 V
Continuous power: 13 kW
Maximum power: 27 kW (72V) / 31 kW (80V) / 40 kW (120V)
Nominal speed: 6000 rpm
Maximum speed: 10,000 rpm
Position sensor: Hall or Encoder
Encoder points: 1024 (4096)
Max. magnet temperature: 150°C
Phase current: up to 800 A
Kt constant: 0.105 Nm/A
Torque (500 A): 52.5 Nm
Torque (700 A): 67 Nm
KV rating: 85
Motor resistance: 3.4 mΩ
Temperature sensor: PT1000
Efficiency: up to 95%
Protection class: IP67*
Weight: 10 kg
Motor dimensions: 115×165 mm
Mounting: mid-drive
Number of pole pairs: 5
Cooling: air-cooled
Suitable for: Sur-Ron Light Bee
