TORP TC500 2.X Controller Kit
TORP TC500 2.X Controller Kit
SKU:
Boost the power of your Talaria MX5 with the TC500 controller.
The next-gen TC500 2.X controller comes with integrated wheelie control hardware, enabling advanced stability management for perfect wheelies and improved ride dynamics (available via app update in summer 2026*), while automotive-grade throttle and overcurrent protection ensure performance. Next-gen components keep it robust and reliable ride after ride.
Feel a 30% increase in power and torque with the Torp TC500 controller on your Talaria MX5. Up to 17 kW peak power with the stock battery, or up to 20 kW with a 72V aftermarket battery and stock motor.
Installation is simple, and performance tuning is even simpler with the Torp app. All original Talaria functions remain: display, kickstand sensor, fall sensor, power mode button, and brake switch. Only the ignition button is non-functional.
Important: The TC500 controller kit for Talaria MX5 comes with a Torp thumb throttle! Special installation instructions must be followed.
*Wheelie control function requires a Torp color display or a small Torp display.
Couldn't load pickup availability
Low stock: 1 left
View full details
Collapsible content
Description

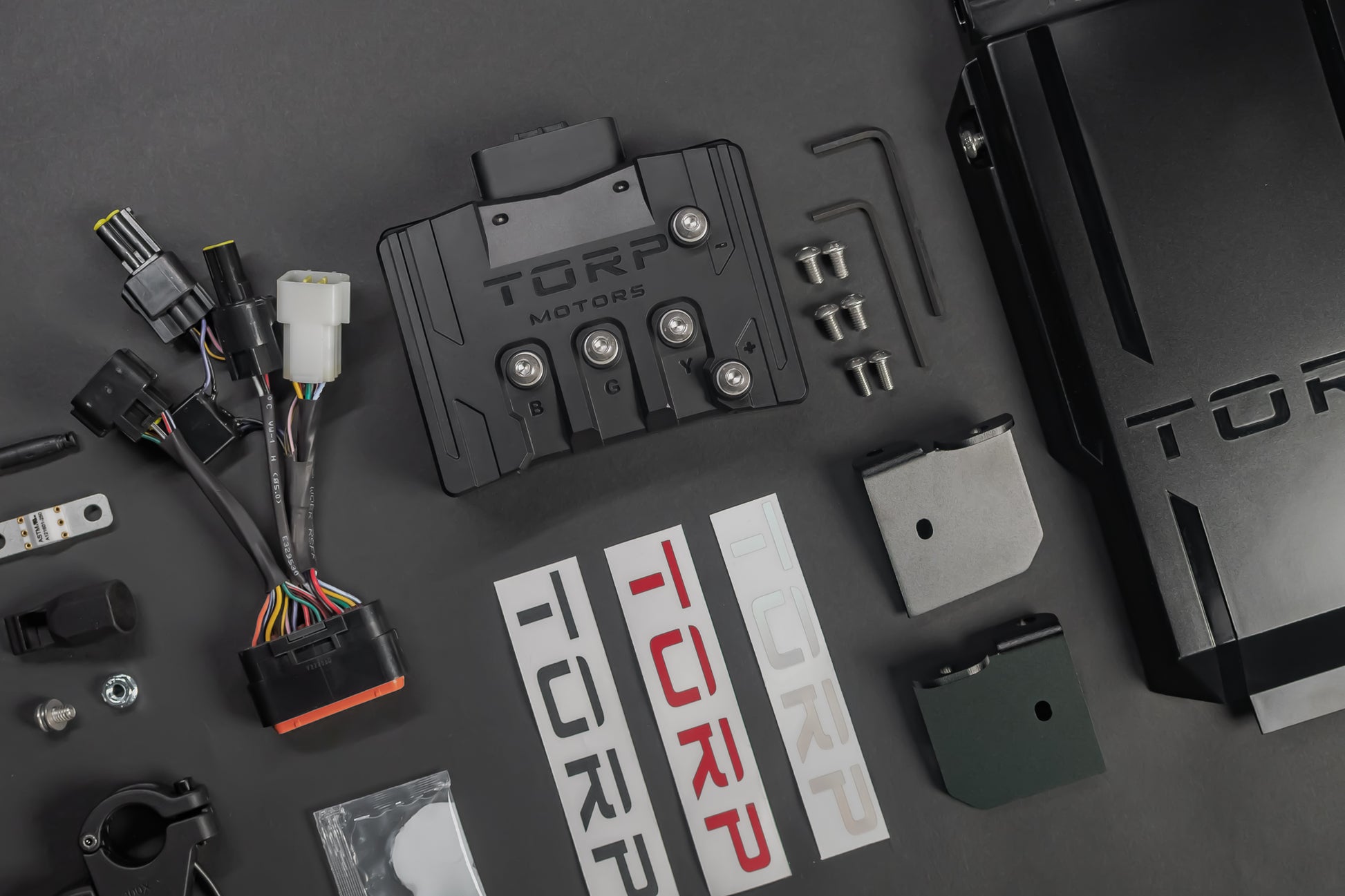

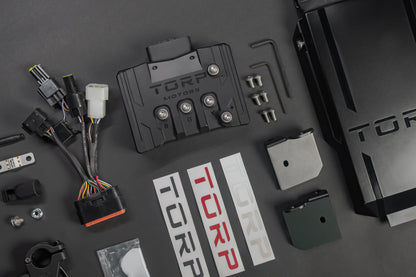

WHAT IS INCLUDED IN THE KIT:

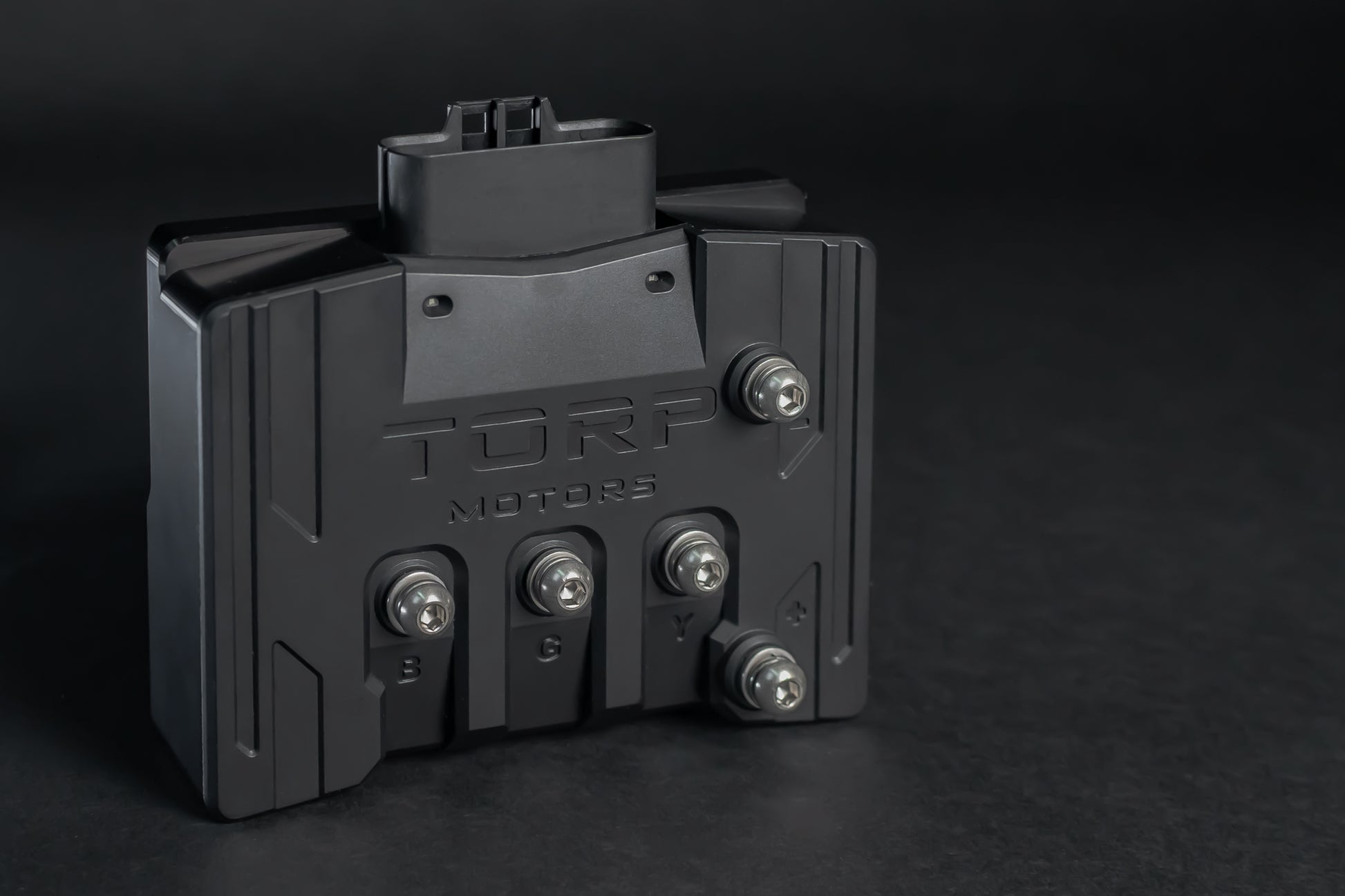

1x TC500 controller

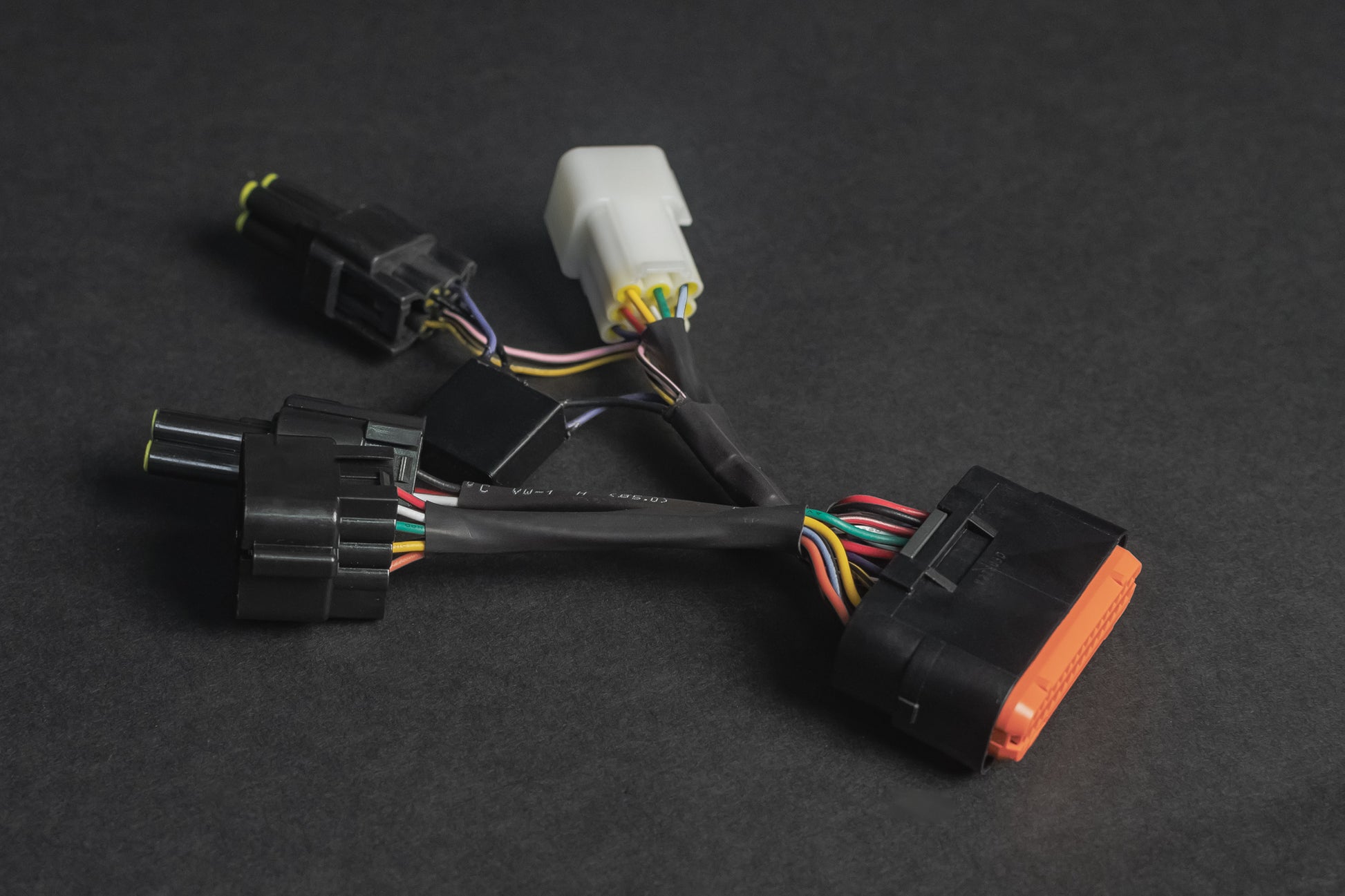

1x wiring harness

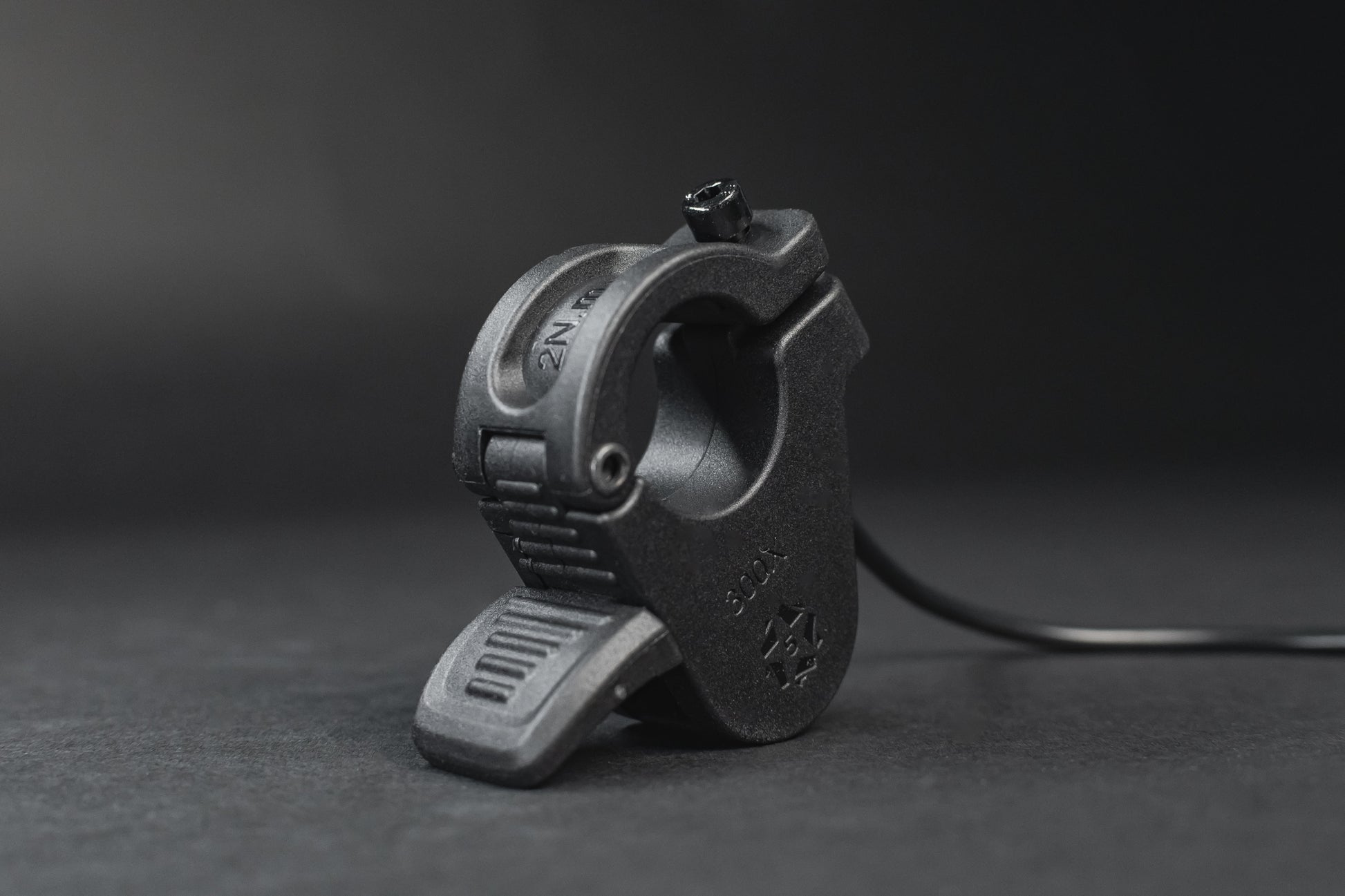

1x thumb throttle
1x fuse with plastic protection
1x connector cover

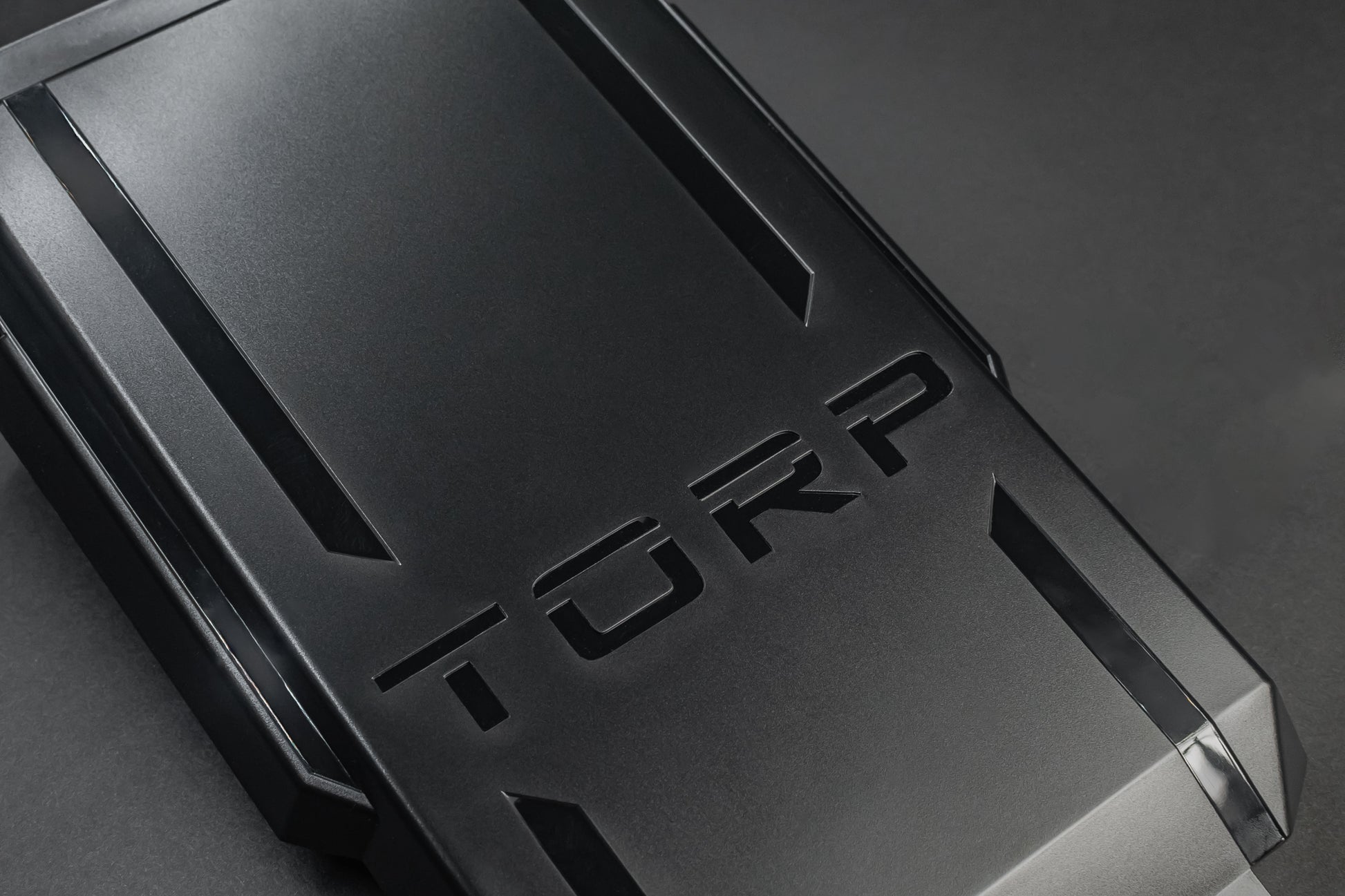

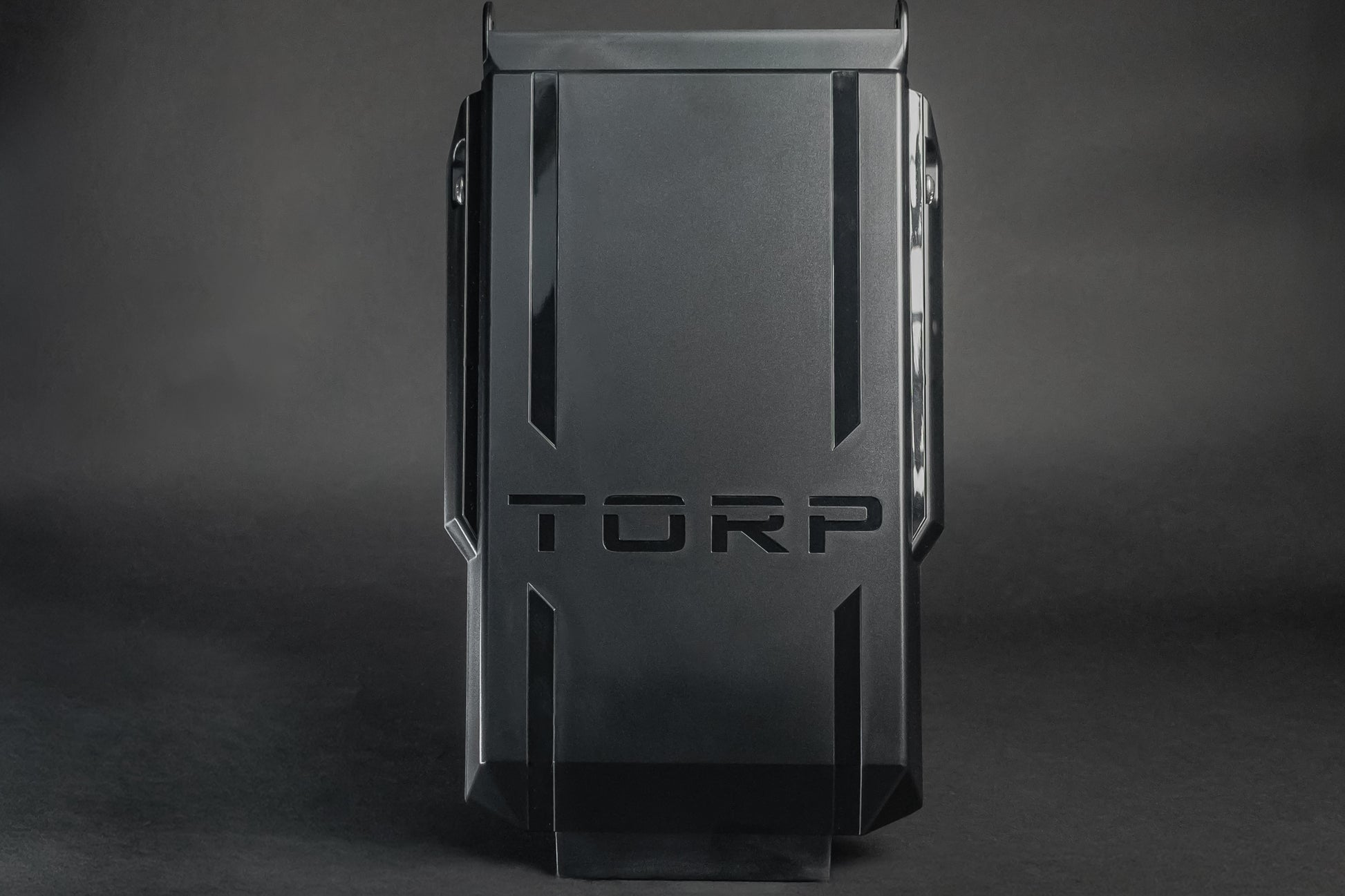

1x plastic cover
bolts and tools required for mounting

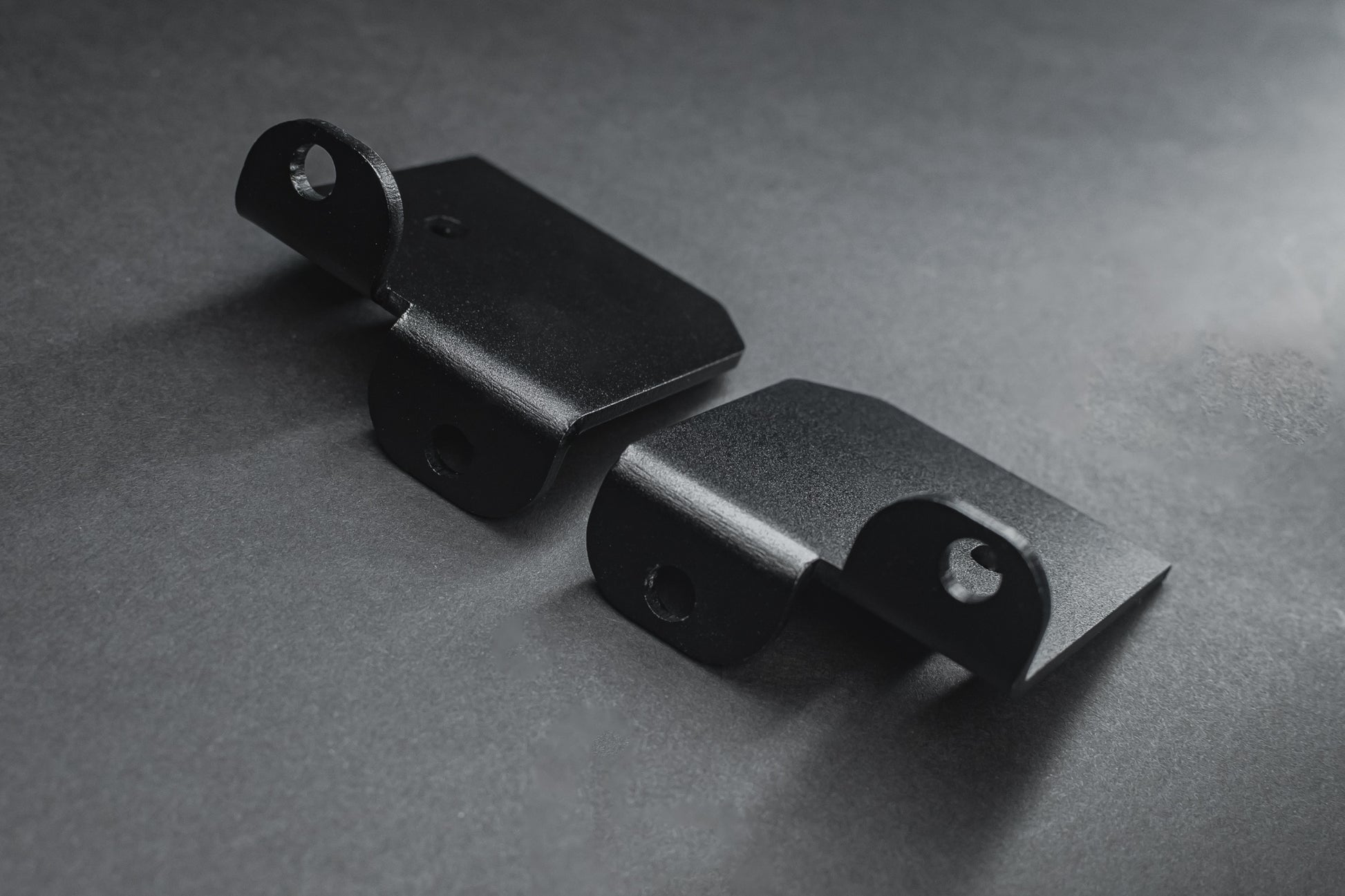

2x mounting brackets
4x stickers
1x silicone grease packet
short instructions
SPECIFICATIONS:
Vector control (FOC)
Supported batteries: from 60 V to 80 V nominal 22S (92.4 V fully charged)
Maximum power: 25 kW
Sensored (HALL Encoder) and sensorless control
Max. battery current: 700 A
Important: currently, the controller cannot communicate with the serial "Talaria" battery manufactured by SCUD. All other controller functions work normally.
Max. phase current: 500 A
Efficiency up to 99%
Operating temperature: from -15 to 75 °C
Bluetooth connectivity
Pre-calibrated – easy calibration via mobile app
Overcurrent, overvoltage, undervoltage, and overheating protection
Communication with standard BMS
Different regenerative braking and throttle modes
Weight: 1.3 kg
Functions: mobile app (iOS and Android), standard display
Protection class: IP67*
Regular software updates
POWER POTENTIAL (Talaria MX5)
Serial controller + serial battery: 13.4 kW
TC500 + serial battery: 17 kW
TC500 + 72 V additional battery: 20 kW
*Although "Torp" controllers are IP67 rated and extremely water-resistant, neither the controller nor the motorcycle's wiring harness is waterproof. If the motorcycle comes into contact with water in any way, it is essential to use dielectric grease on all connections. The warranty does not cover failures or damage resulting from the use of motor controllers in activities where frequent or prolonged immersion in water is expected, such as riding through streams, rivers, or flooded areas. Over time, seals and components may wear out, reducing the product's water resistance. Damage due to natural wear and tear is not covered by the 2-year warranty.
Modifying a serial electric vehicle may mean that the vehicle no longer meets local road safety requirements. Before modifying your vehicle, it is essential to consult with specialists or responsible authorities regarding compliance with road traffic requirements.
