TORP TC1000 2.X Controller Kit

TC1000 2.X controller kit

EASY INSTALLATION

Unbox, plug in, and ride. The system is ready for use in just 20 minutes – all you need to do is replace the wiring harness and protective covers.

TORP APP

All settings in one place. Control parameters, monitor real-time data, and receive continuous feature updates.

COMPATIBILITY WITH STANDARD BMS

Maximize the capabilities of your stock battery – no bypass needed.

WHEELIE CONTROL

The new generation TC1000 2.X comes with integrated wheelie control hardware – advanced stability management for smoother wheelies and improved riding dynamics (functionality will be available via app update in summer 2026*).

THROTTLE MEETING LATEST AUTOMOTIVE STANDARDS

Precise control with redundant throttle signals – maximum safety and responsiveness.

ROBUST AND RELIABLE

Designed for the toughest tracks. Industry-leading overcurrent protection reacting in under 1 μs. Next-generation components remain reliable ride after ride.

SENSORLESS MOTOR TEMPERATURE PROTECTION

Only TORP controllers offer true sensorless motor temperature protection. Even if the temperature sensor fails under high load, the motor remains protected and functional.

INCREASED PERFORMANCE WITHOUT COMPROMISES

With Torp controllers, all original Talaria functions remain: standard display, kickstand sensor, fall sensor, power mode button, and brake switch (only the start button does not function).

POWER POTENTIAL

Talaria MX3 (stock motor):
Stock 60V: 8 kW
Custom 60V: 13.5 kW
Custom 72V: 18 kW
Custom 80V: 20 kW

Talaria MX4 (stock motor):
Stock 60V: 11.5 kW
Custom 60V: 13.5 kW
Custom 72V: 18 kW
Custom 80V: 20 kW

IMPORTANT: The controller cannot communicate with the stock Talaria battery manufactured by SCUD. All other controller functions operate normally.

*Using the wheelie control function requires a Torp color or small display.

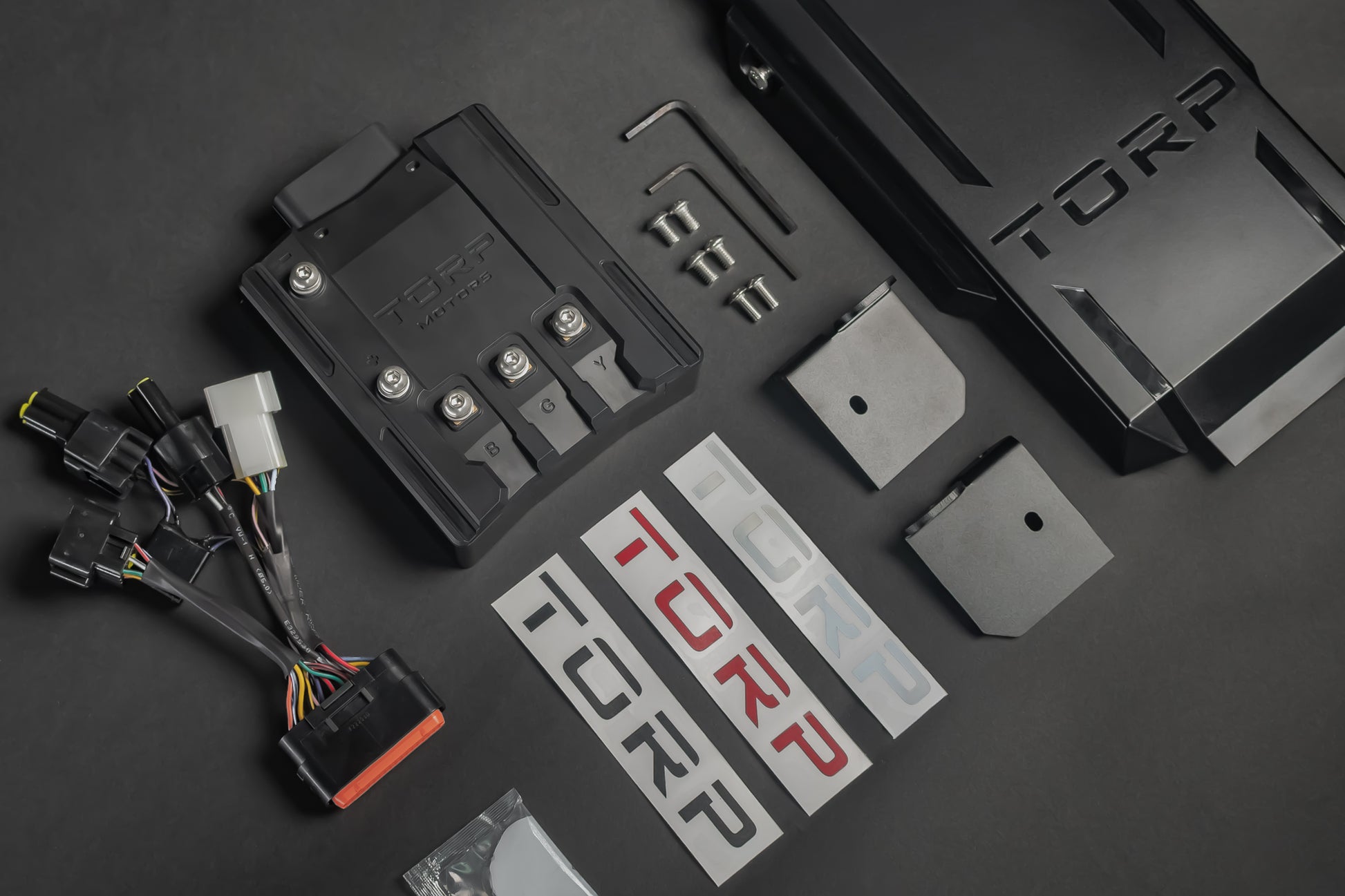

WHAT'S IN THE KIT:

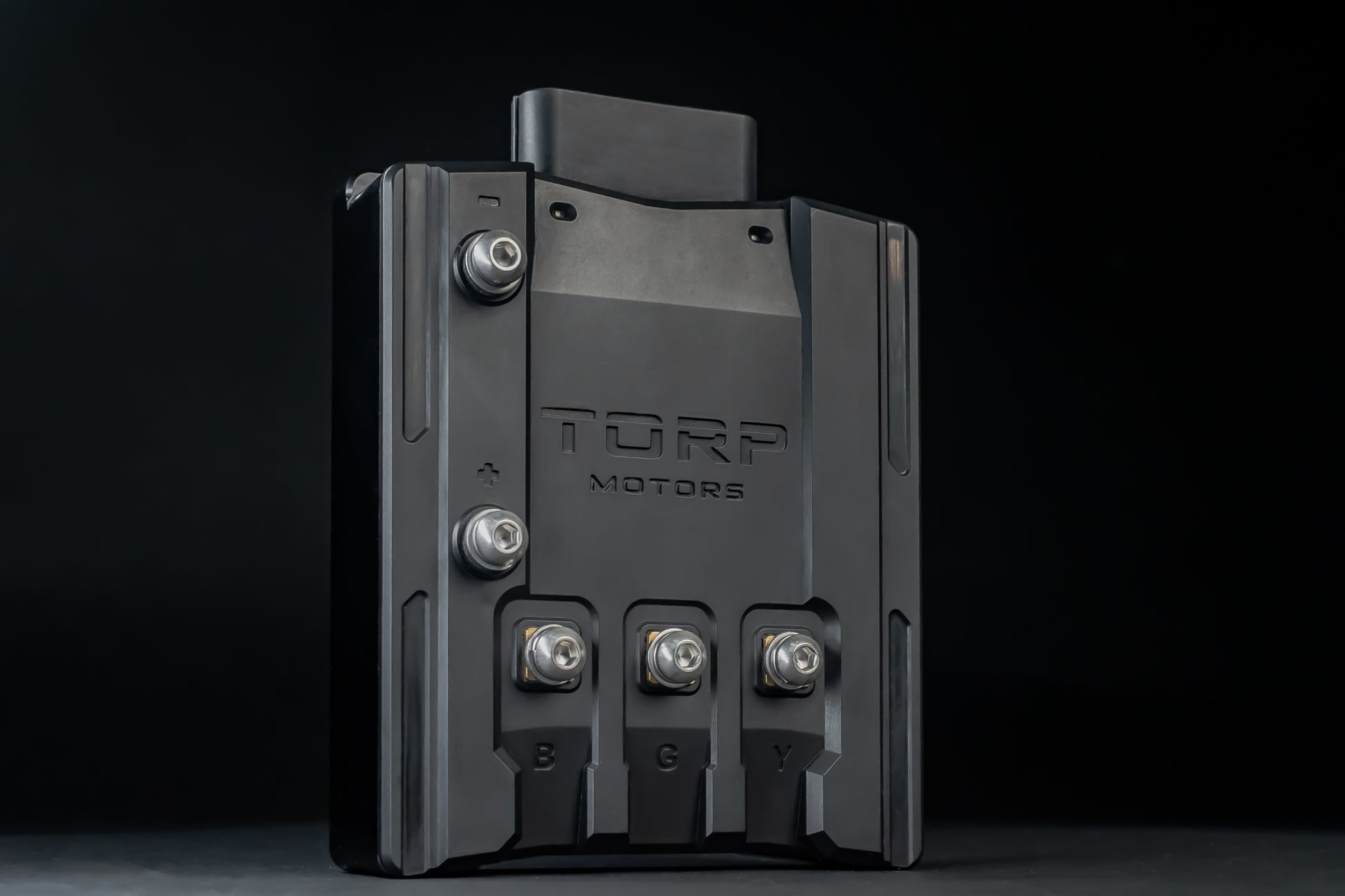

1x TC1000 controller (version 2.X)

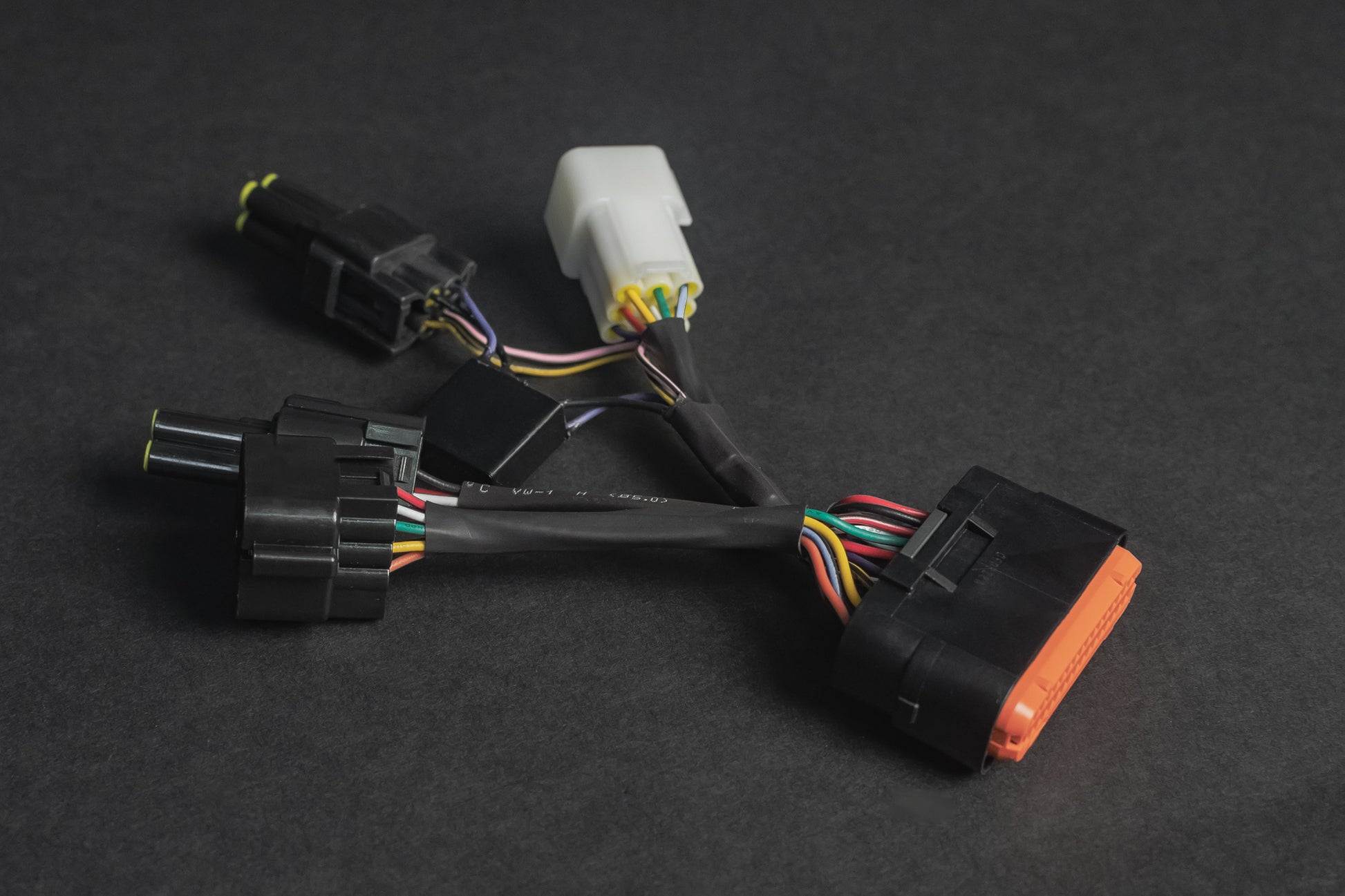

1x wiring harness

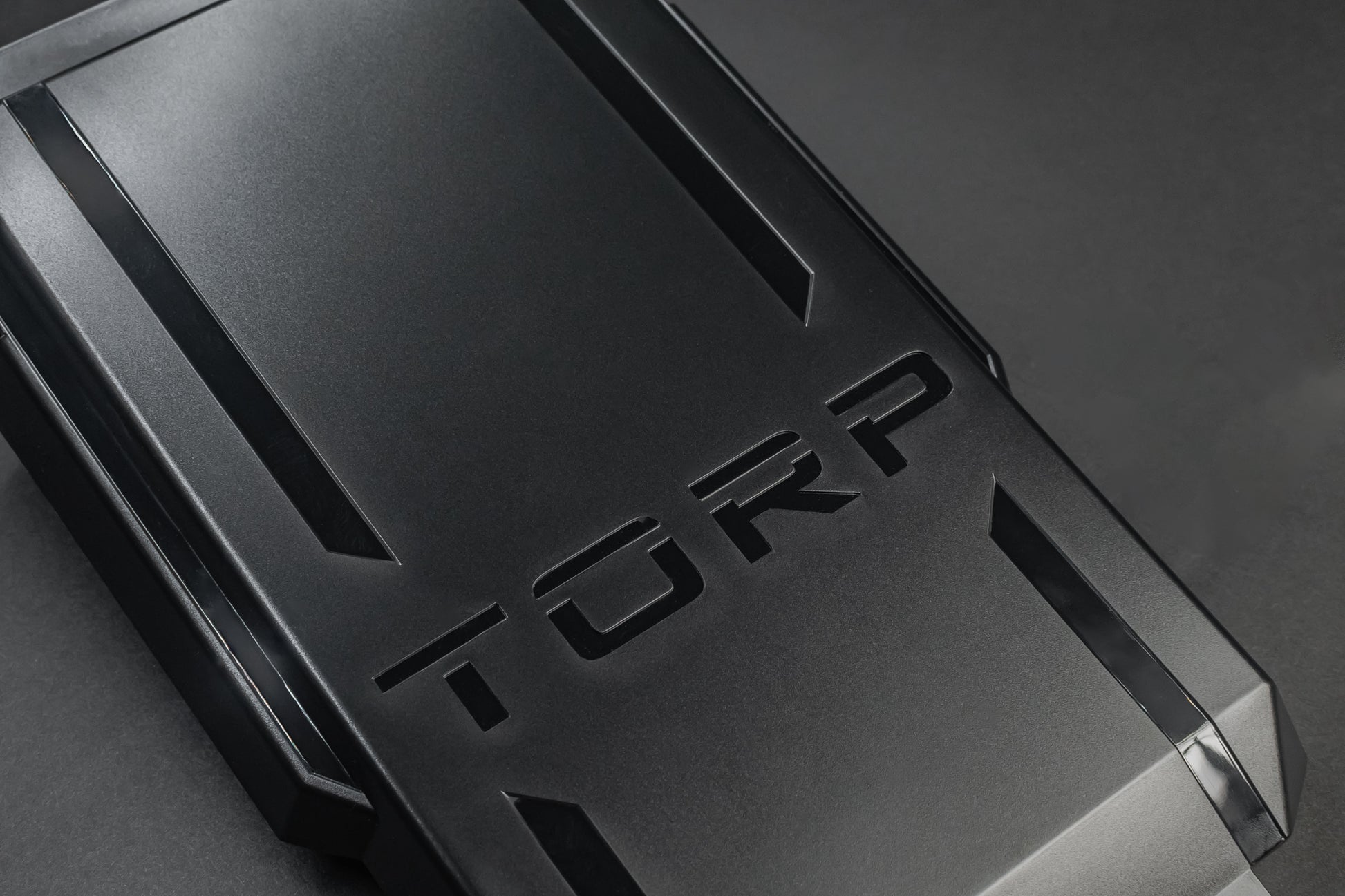

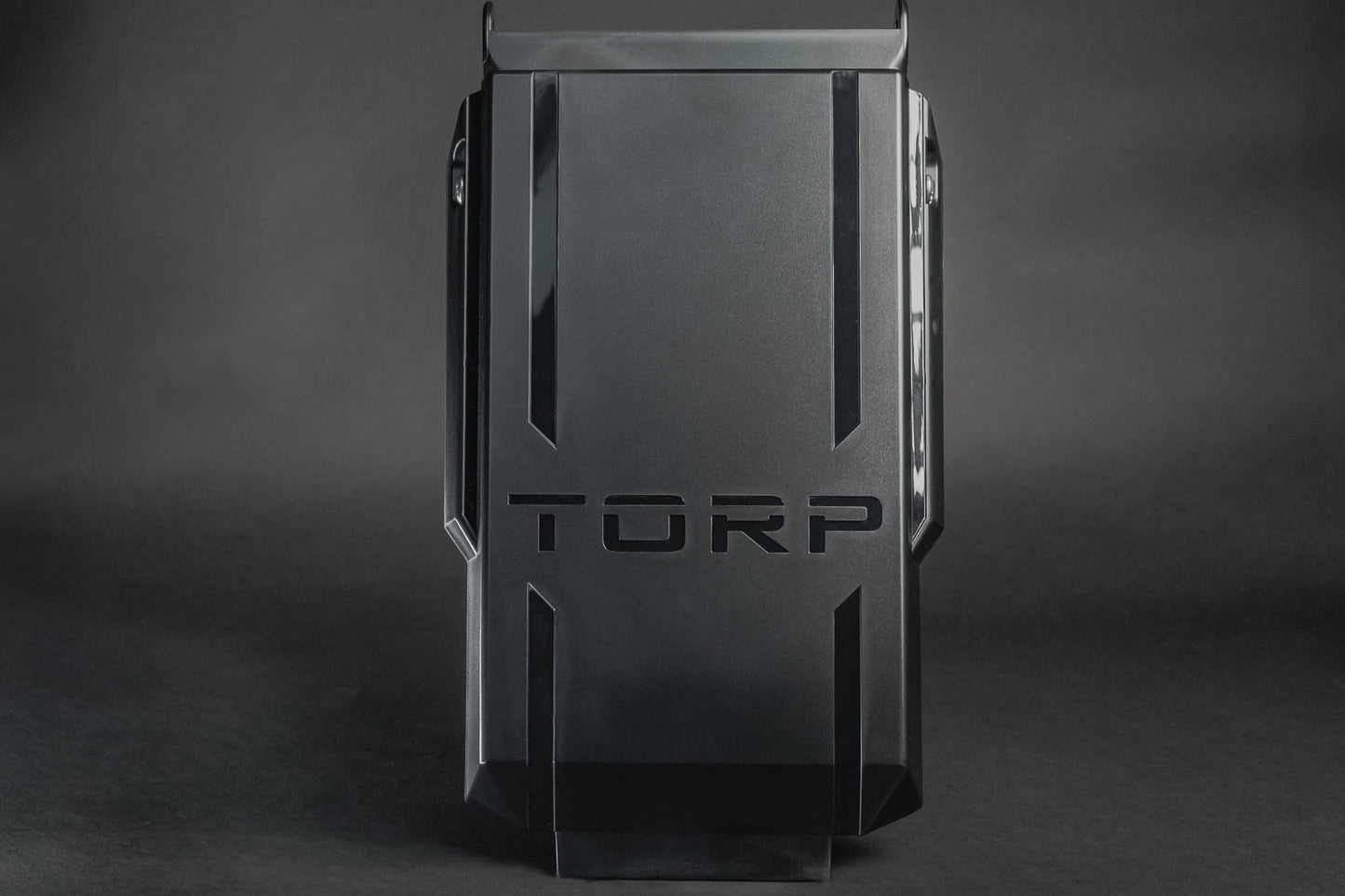

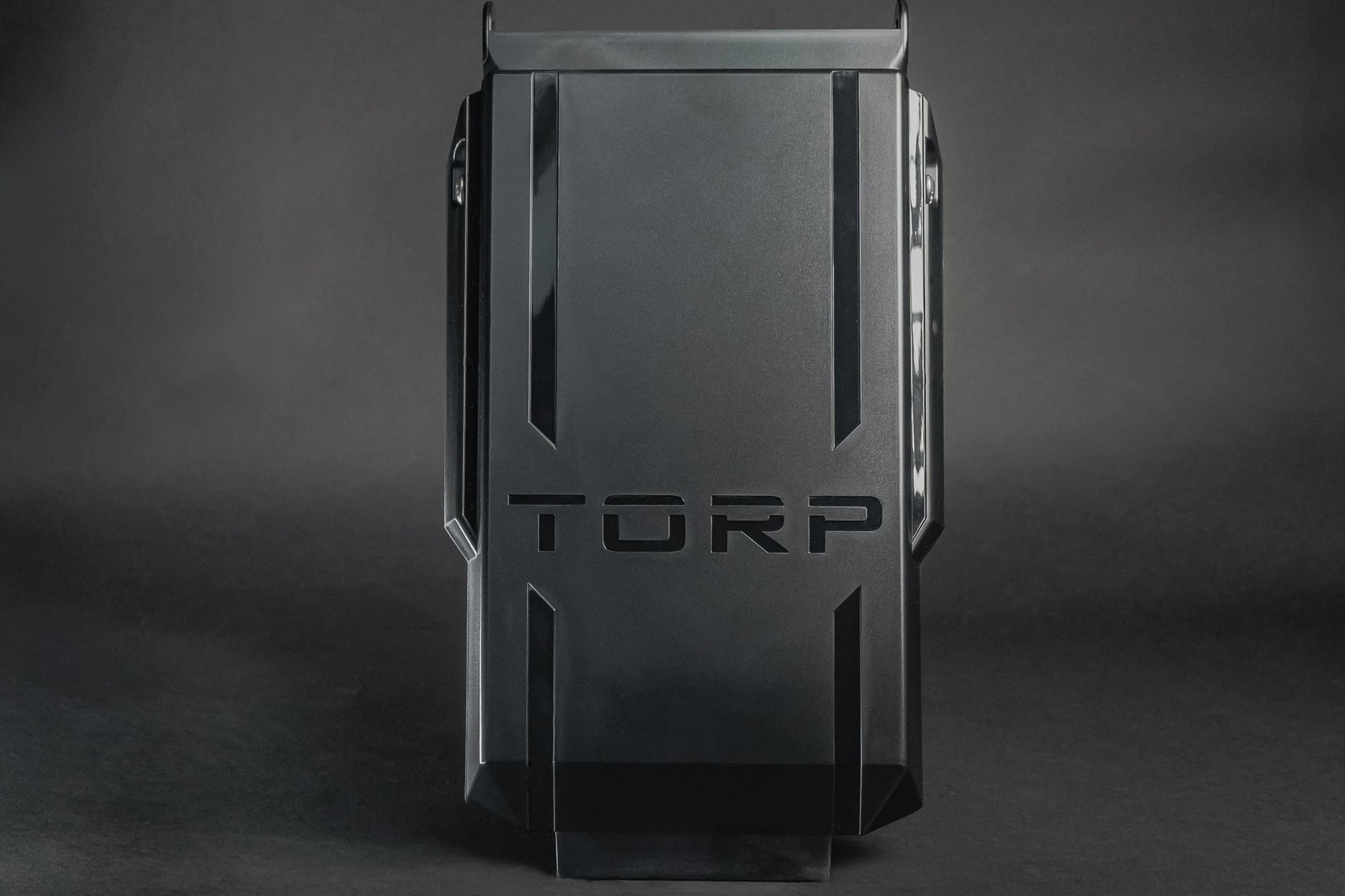

1x plastic cover
screws and necessary mounting tools

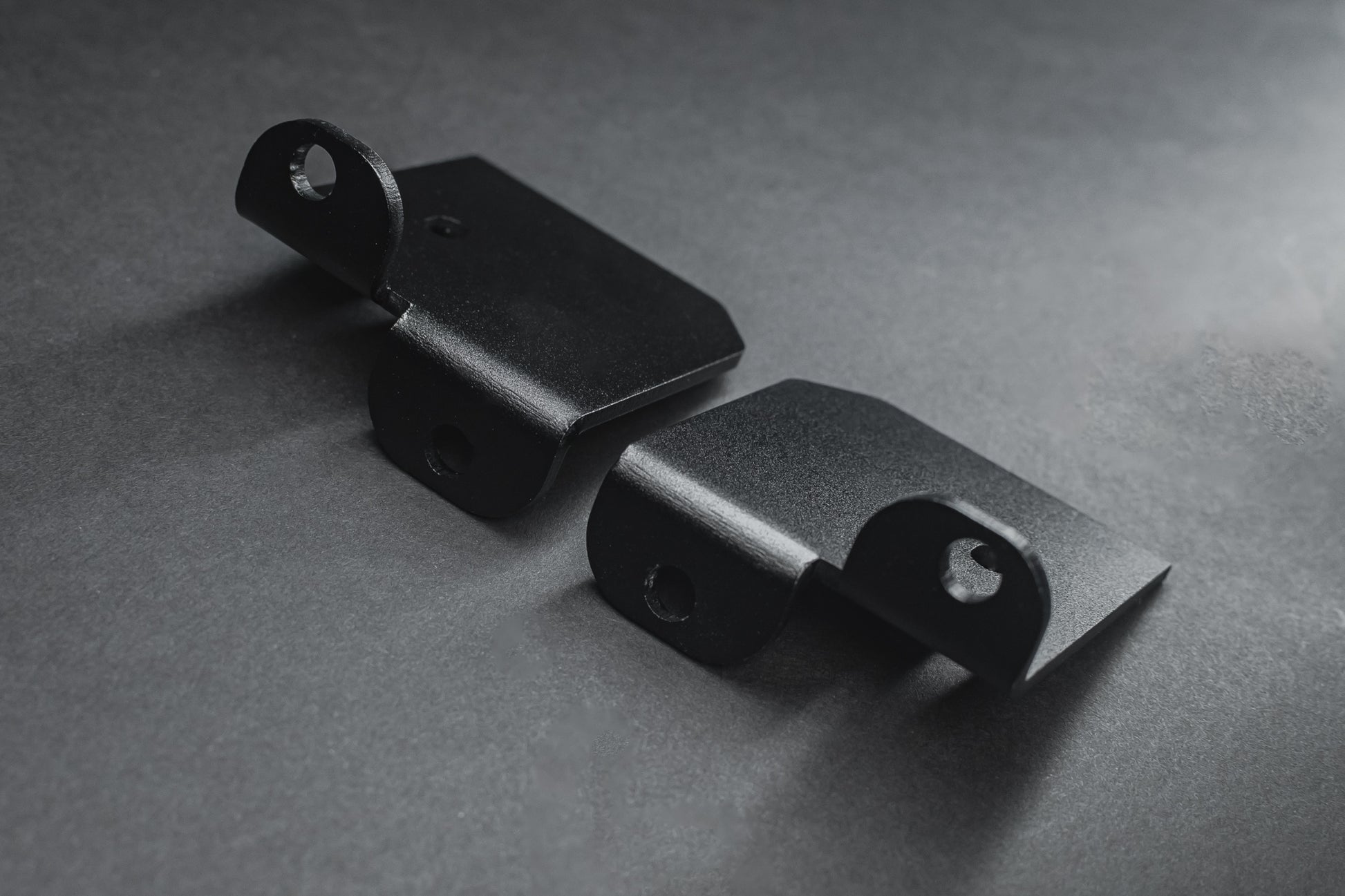

2x mounting brackets
4x stickers
1x silicone grease packet
quick start guide

LEGAL NOTICE

Modifying a stock electric vehicle may mean that the vehicle no longer complies with local road safety requirements. Before modifying, it is essential to consult with specialists or responsible authorities.

SPECIFICATIONS

FOC (Field-Oriented Control)
Supported batteries: 60–80 V (22S, 92.4 V fully charged)
Maximum power: 50 kW*
Sensored (HALL Encoder) and sensorless modes
Max. battery current: 700 A
Max. phase current: 1000 A
Efficiency up to 99%
Operating temperature: -15°C to +75°C
Bluetooth connectivity
Easy calibration via mobile app
Protections: overcurrent, overvoltage, undervoltage, overheating
Compatibility with standard BMS
Different regenerative braking and throttle modes
Weight: 1.3 kg
Features: mobile app (iOS and Android), standard display
Protection class: IP67*
2-year warranty
Regular software updates
Fits: Talaria MX3 / MX4 / Sting R

*With stock Talaria MX3 / MX4 motor and 80V aftermarket battery, maximum power is 20 kW.

*IP67 note: While controllers are IP67 waterproof, wiring harnesses are not completely waterproof. If the motorcycle comes into contact with water, dielectric grease must be used in all connections. Warranty does not cover failures due to frequent or prolonged immersion in water.
