TORP TC500 2.X Controller Kit
TORP TC500 2.X Controller Kit
SKU:
Boost the power of your Talaria MX3 / MX4 with the TC500 controller.
The next-generation TC500 2.X controller comes with integrated wheelie control hardware, enabling advanced stability management for perfect wheelies and improved riding dynamics (to be available via an app update in summer 2026*), while automotive-grade throttle and overcurrent protection ensure performance. Next-gen components keep it robust and reliable ride after ride.
Maximum power with a stock battery for Talaria MX4 is 11.5 kW, and for MX3, it's 8 kW.
Compatible with stock Talaria and aftermarket (60V, 72V, and 80V) batteries. Easy to install and even easier to customize to your needs using the Torp app.
With Torp controllers, all original Talaria functions remain (standard Talaria display, kickstand sensor, fall sensor, power mode button, and brake switch), except for the ignition button.
*Torp color display or small Torp display is required to use the wheelie control function.
Couldn't load pickup availability
Low stock: 1 left
View full details
Collapsible content
Description

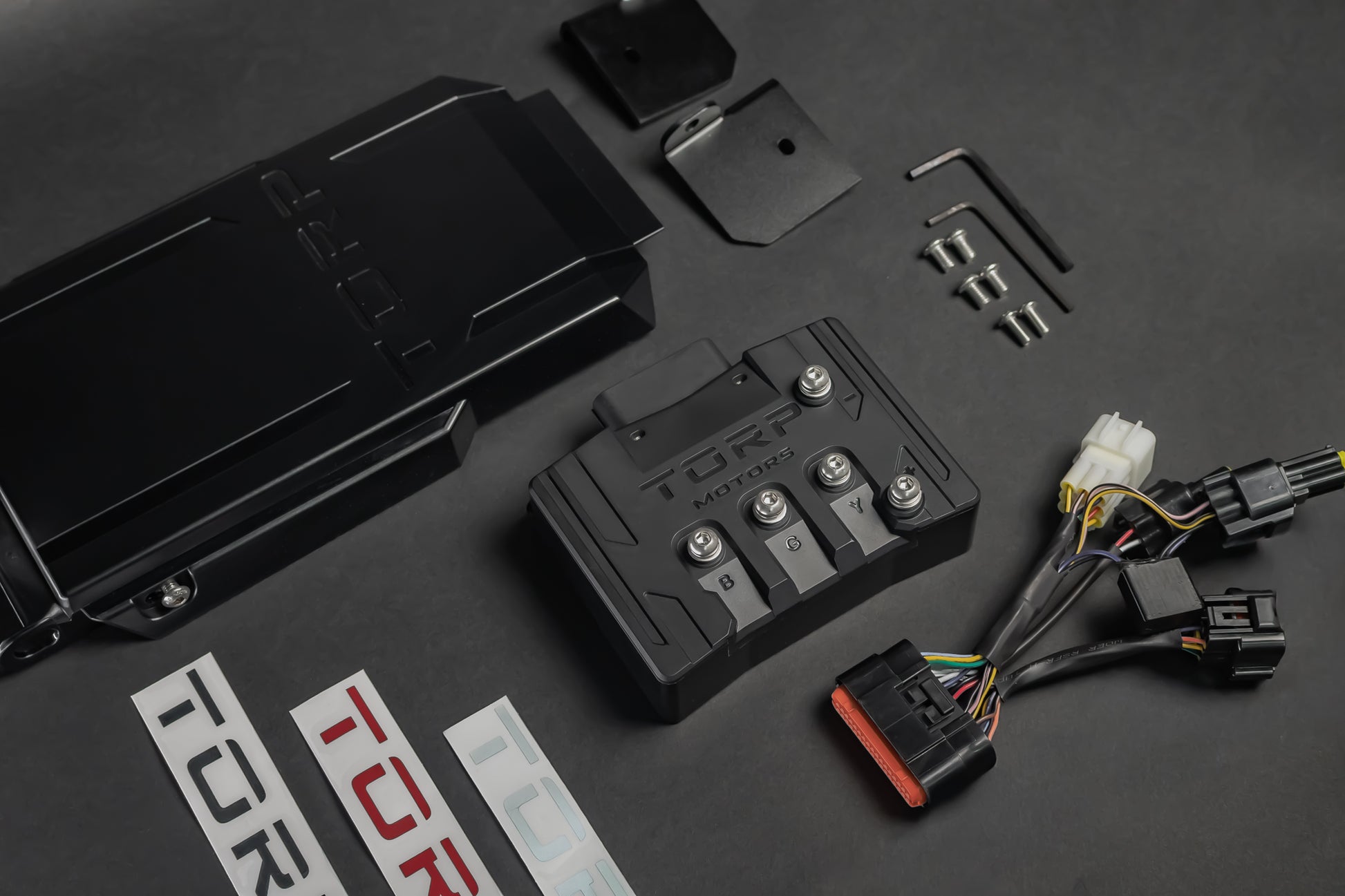

WHAT'S IN THE BOX:

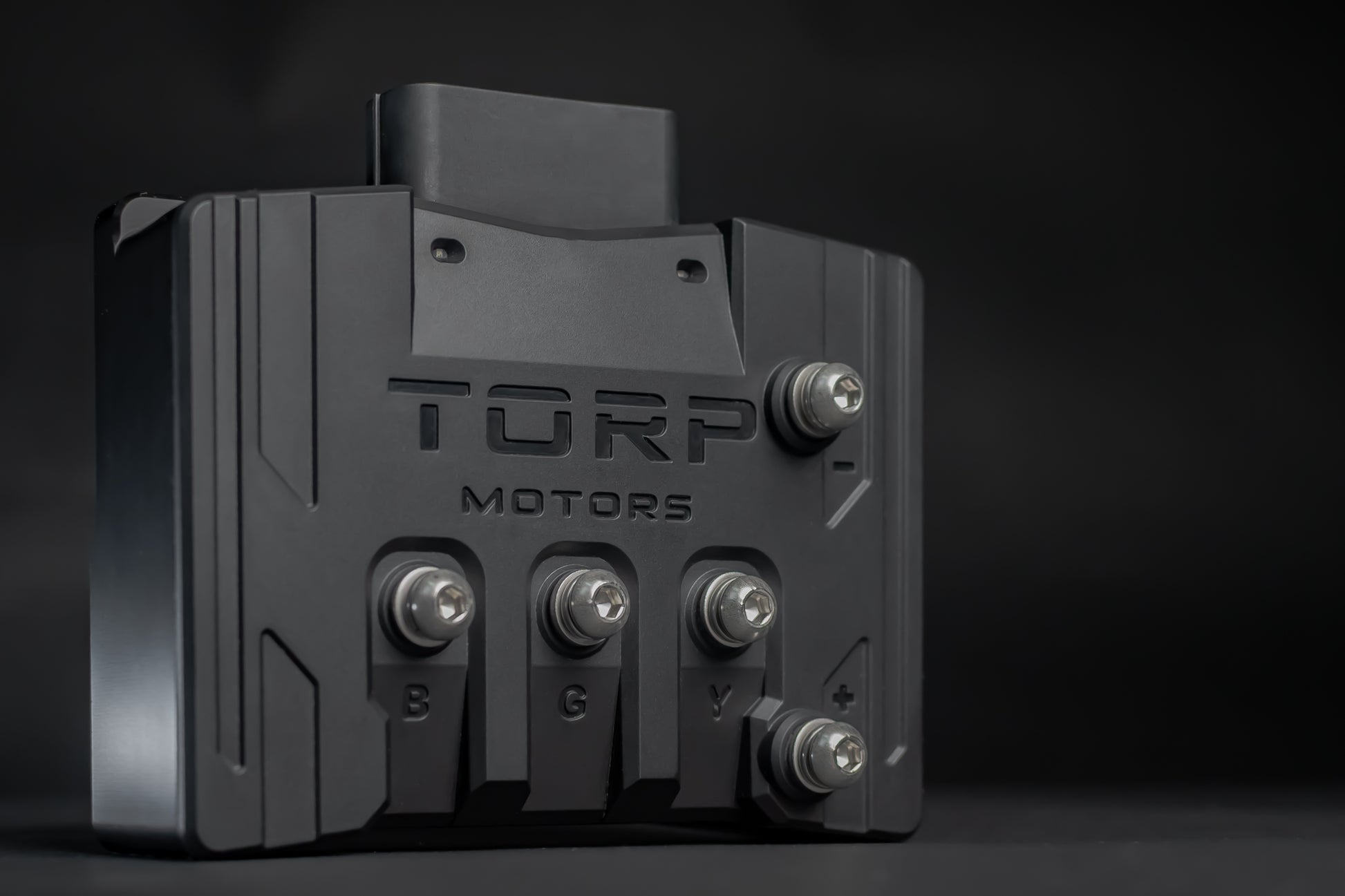

1x TC500 controller (version 2.X)

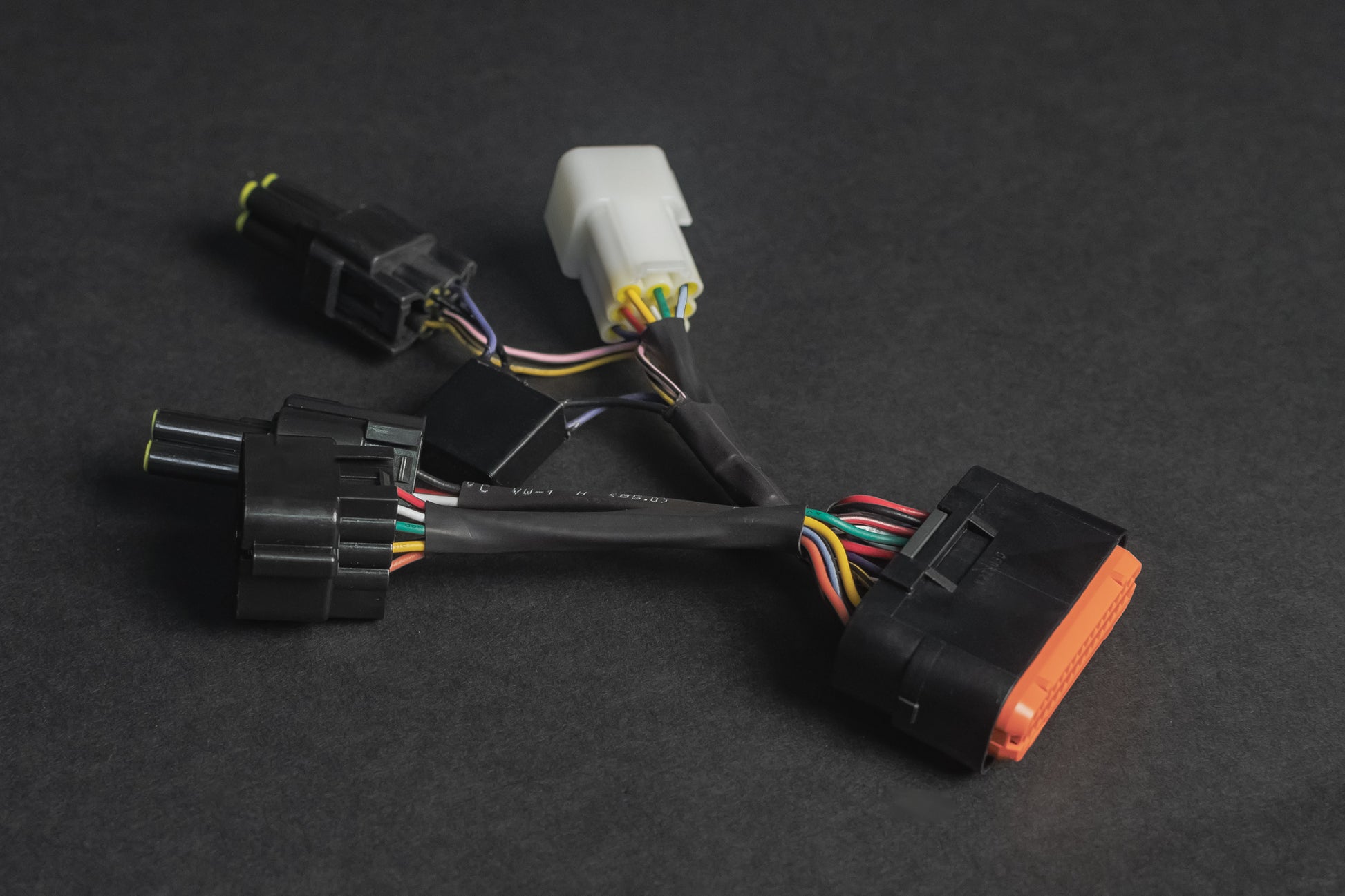

1x wiring harness

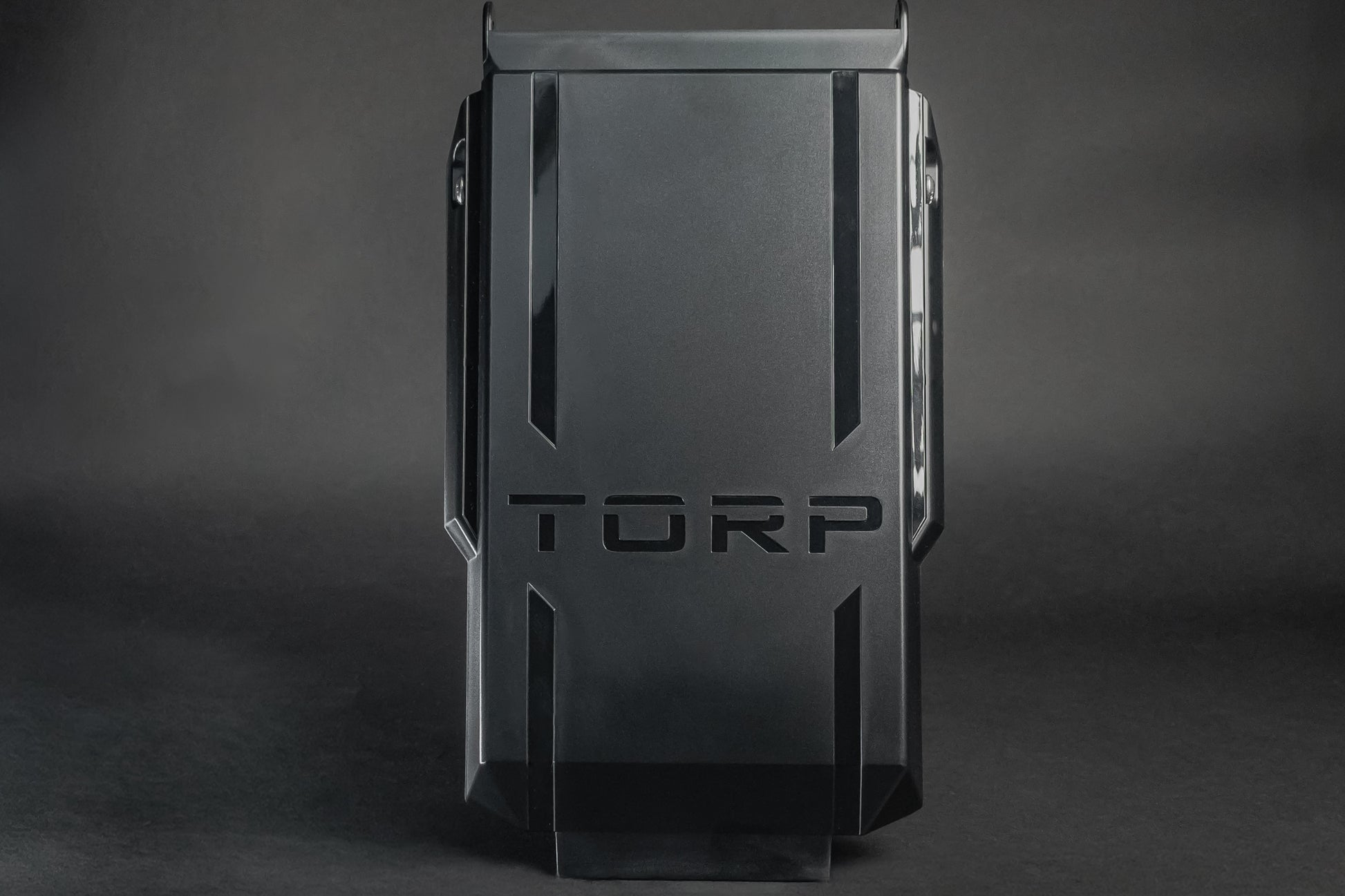

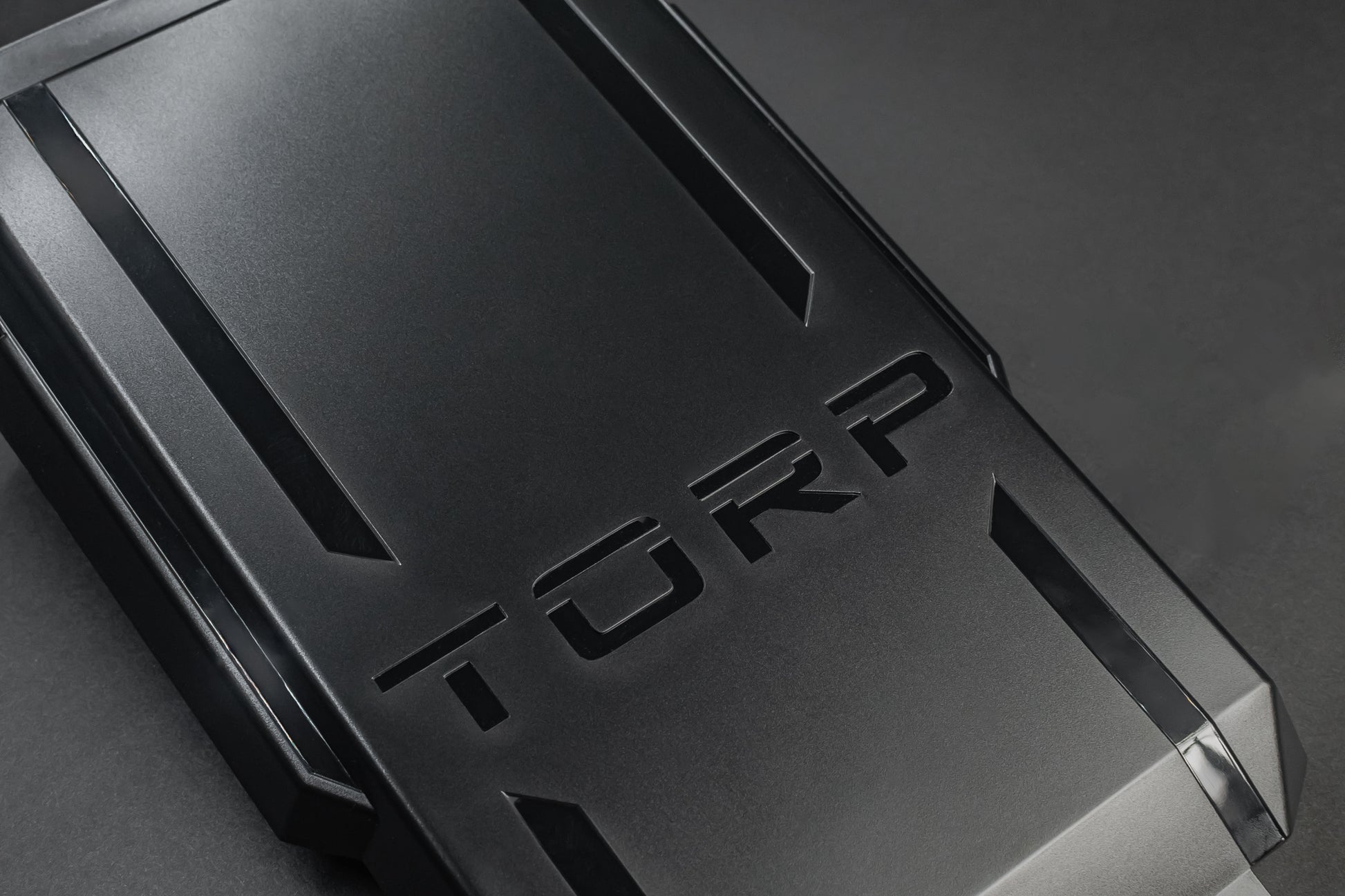

1x plastic cover

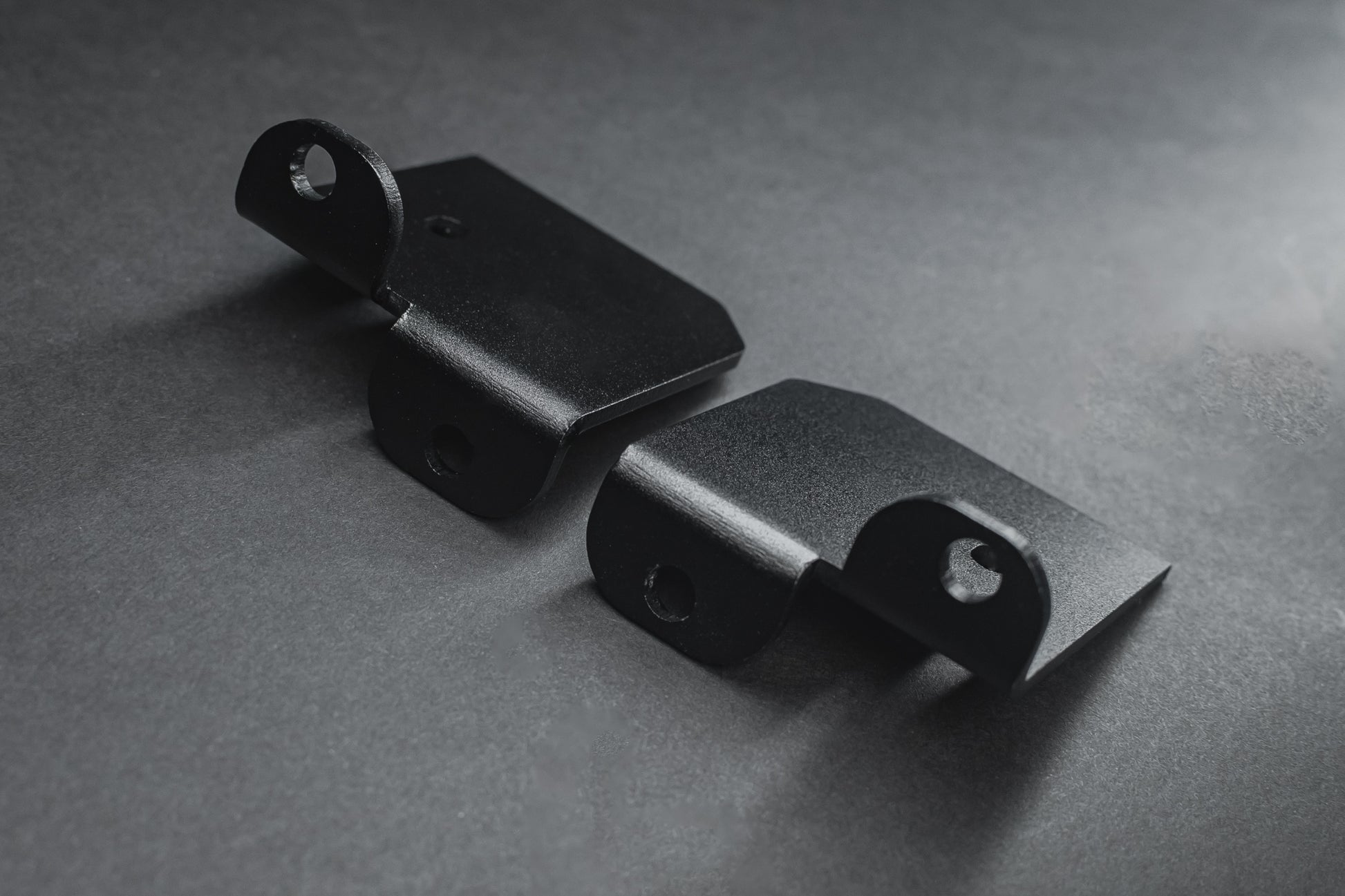

screws and mounting tools
4x stickers
1x silicone grease packet
quick guide
SPECIFICATIONS:
Vector control (FOC)
Supported batteries: from serial 60 V to 80 V nominal 22S (92.4 V fully charged)
Maximum power: 25 kW*
Sensored (HALL Encoder) and sensorless control
Max. battery current: 350 A
*When paired with the serial Talaria MX3 / MX4 electric motor and a 72 V additional battery, the maximum power is 18 kW.
Important: currently, the controller cannot establish communication with the serial Talaria battery manufactured by SCUD. All other controller functions work normally.
Max. phase current: 500 A
Efficiency up to 99%
Operating temperature: -15 to 75 °C
Bluetooth connectivity
Pre-calibrated – no additional steps required
Overcurrent, overvoltage, undervoltage, and overheating protection
Communication with standard BMS
Different regenerative braking and throttle modes
Weight: 1 kg
Functions: mobile app (iOS and Android), standard Talaria display
Protection class: IP67*
Regular software updates
*While Torp controllers have an IP67 rating and are highly water-resistant, neither the controller nor the motorcycle's wiring harness is waterproof. If the motorcycle comes into contact with water in any way, it is essential to use dielectric grease on all connectors. The warranty does not cover failures or damage resulting from the use of motor controllers in activities where frequent or prolonged immersion in water is expected, such as riding through streams, rivers, or flooded areas. Over time, seals and components may wear out, reducing the product's water resistance. Damage resulting from natural wear and tear is not covered by the 2-year warranty.
Modifying a serial electric vehicle may mean that the vehicle no longer meets local road safety requirements. Before modifying your vehicle, it is essential to consult with specialists or responsible authorities regarding compliance with road traffic requirements.
