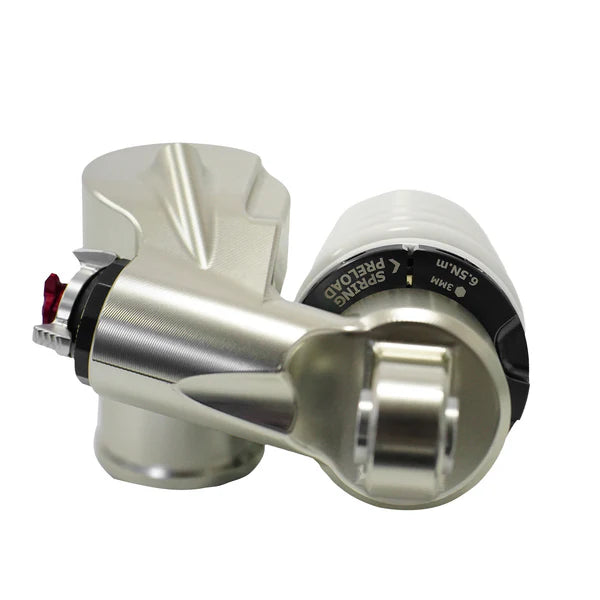

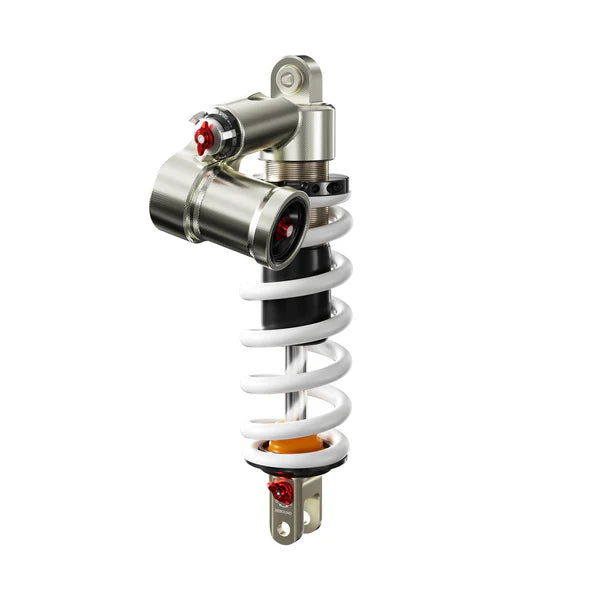

RFLOXA RAF55RV Rear Shock Absorber

RFLOXA RAF55RV Rear Shock Absorber

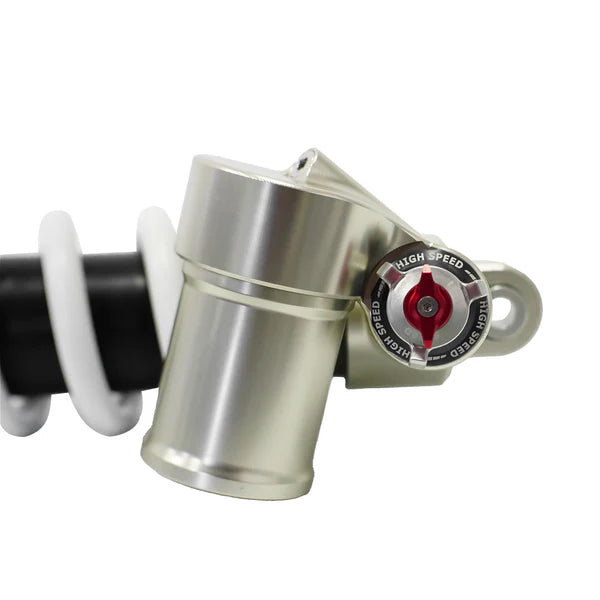

EXTERNAL NITROGEN RESERVOIR

More stable damping even under heavy loads or during long periods of intense riding.

DLC COATING ON MAIN TUBE

Reduces friction, extends service life, and ensures smooth shock absorber operation.

OIL / GAS SEPARATION SYSTEM

Consistent and precise damping throughout the entire stroke range, without loss of efficiency during intense use.

FULL ADJUSTABILITY

3 independent settings for precise tuning according to rider and track:

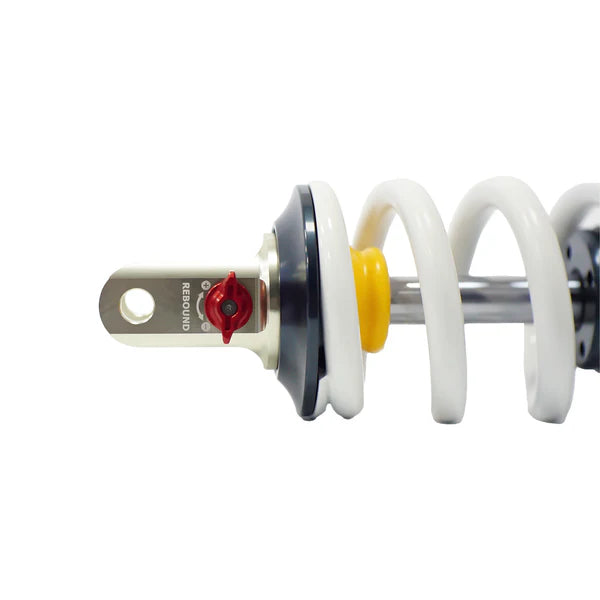

Rebound damping (20 positions)
High-speed compression damping (3 turns)
Low-speed compression damping (22 positions)

ROBUST CONSTRUCTION

CNC milled AL6061-T6 upper mount, AL7075-T6 aluminum alloy main body, 42CrMo main piston shaft, 55CrSi spring wire.

OPTIONAL SPRING STIFFNESS

Three options based on rider weight:
450 lbs – 65–85 kg
550 lbs – 75–105 kg
650 lbs – 95–135 kg

SPECIFICATIONS

Center-to-center distance: 320 mm
Stroke length: 85 mm
Main tube diameter: ∅16 mm
Main piston diameter: ∅40 mm
Suitable for: Off-road electric motorcycles (Ultra Bee)
External nitrogen reservoir
DLC coating on main tube
Oil/gas separation damping system
Adjustments: Rebound damping (20 positions), High-speed compression (3 turns), Low-speed compression (22 positions)
Materials: CNC milled AL6061-T6 upper mount, AL7075-T6 aluminum alloy main body, 42CrMo main piston shaft, 55CrSi spring wire
Spring stiffness by weight: 450 lbs – 65–85 kg, 550 lbs – 75–105 kg, 650 lbs – 95–135 kg
Fits: Surron Ultra Bee
