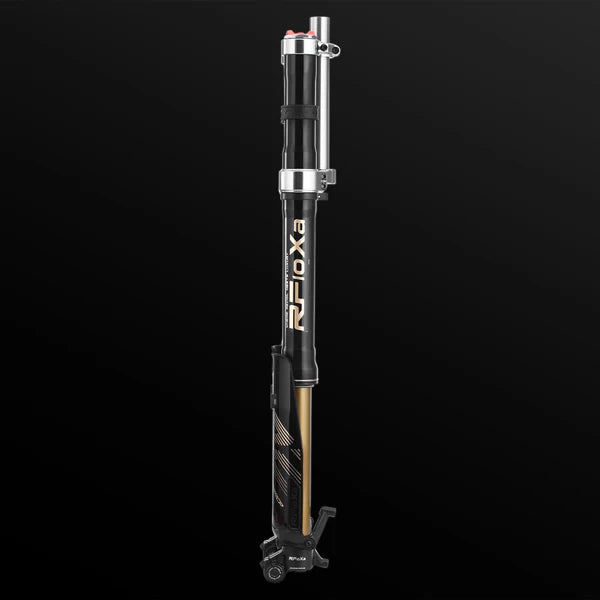

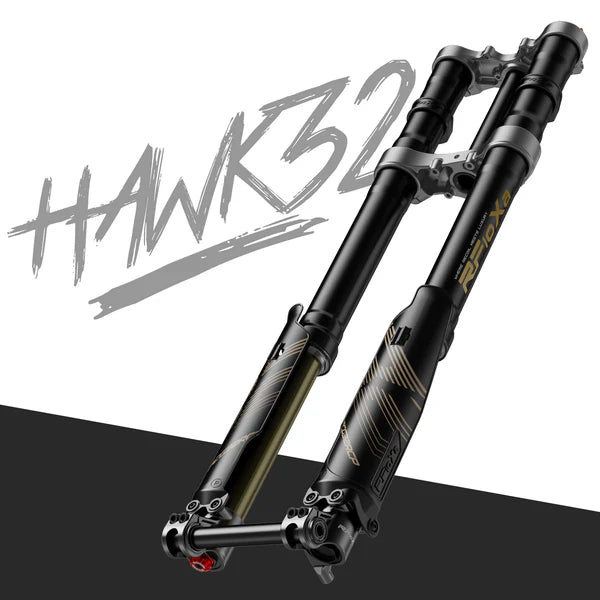

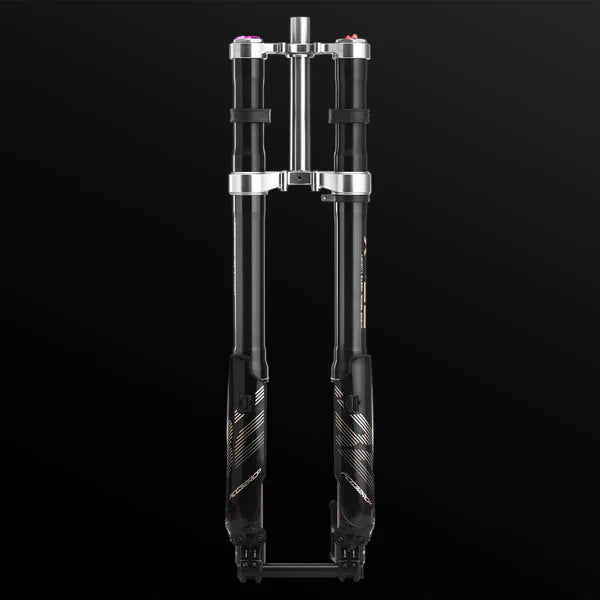

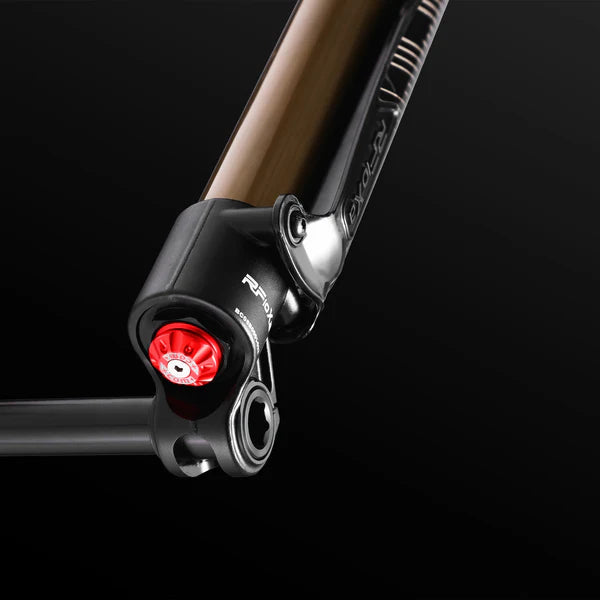

RFLOXA Hawk32 Front Fork

RFLOXA Hawk32 Front Fork

UPSIDE-DOWN SYSTEM

Inverted oil-spring design – smoother damping and better surface contact for both off-road and jumps.

ROBUST AND RELIABLE

Designed for electric off-road motorcycles and downhill bikes – withstands intensive use without leaks.

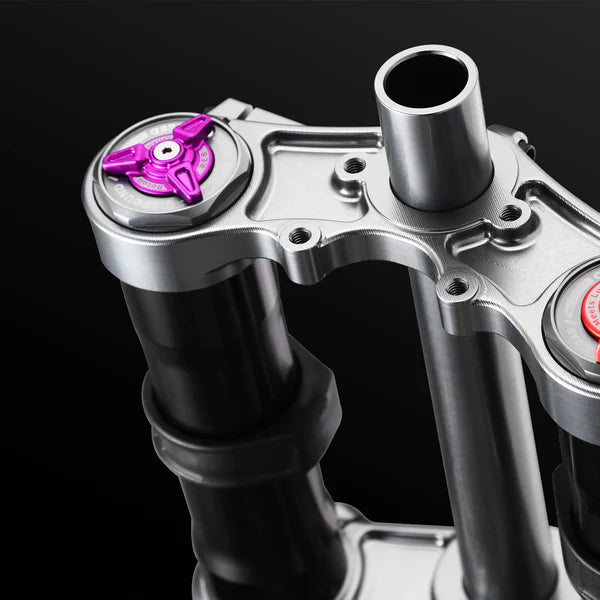

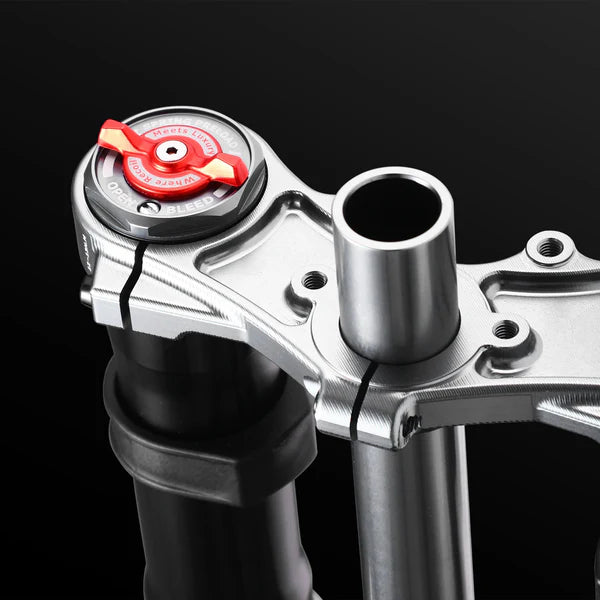

FULL ADJUSTMENT

Multi-stage compression, rebound, and spring preload adjustment – fine-tune it to your weight and riding style.

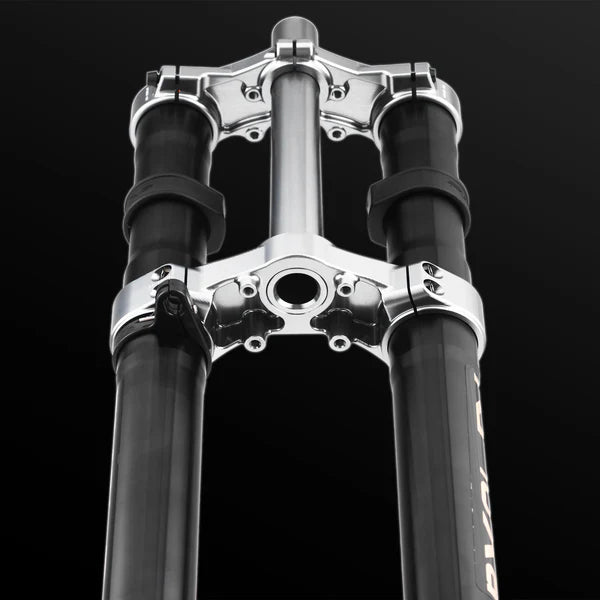

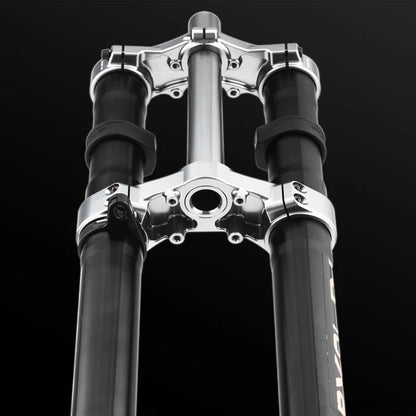

DURABLE CONSTRUCTION

Forged AL6061-T6 aluminum alloy lower clamps, AL7075-T6 aluminum fork tubes, 55CrSi spring wire.

SELECTABLE SPRING STIFFNESS

Three options based on rider weight and usage:
45 lbs – up to 100 kg
60 lbs – 100–130 kg (frequent jumps)
45–60 lbs (progressive) – 80–130 kg

Note: The bottom bearing is not included. If you need a bearing kit, it can be ordered separately.

COMPATIBILITY

Fits: Talaria MX3 / MX4 / XXX / XXX Pro, SurRon LBX / LBS / L1E, E-Ride Pro S / SS 1.0/2.0, Rawrr Mantis / Mantis X, 79 Bike Falcon M / PRO / GT, Ventus One, Ventus One Plus (requires 8 mm spacer for installation), RFN Apollo, Rerode R1, SRPNTMOTO
Does not fit: Rawrr Mantis X PRO

SPECIFICATIONS

Center-to-center distance: 750 mm
Main piston travel: 203 mm
Tube diameter: ∅37 mm

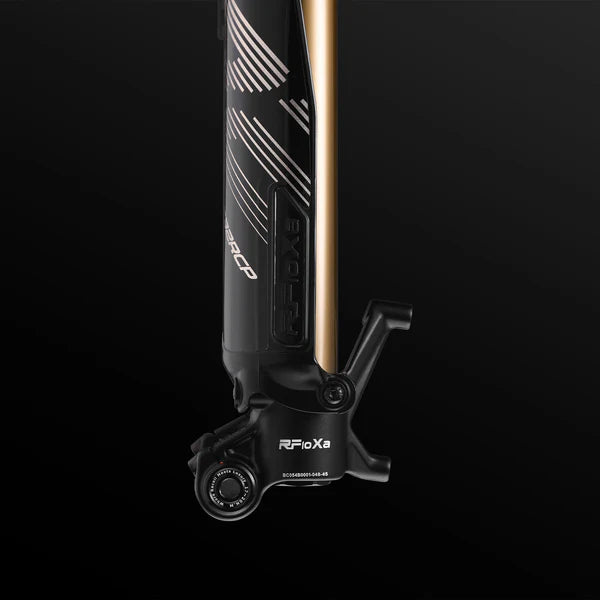

Caliper mounting distance: 74 mm
Brake disc size: ∅203 mm (upgradeable)
Suitable for: electric off-road motorcycles, downhill bikes
Damping system: inverted, oil-spring
Adjustments: multi-stage compression, rebound, spring preload
Materials: forged AL6061-T6 lower clamps, AL7075-T6 fork tubes
Spring wire: 55CrSi
Spring stiffness by weight: 45 lbs – up to 100 kg, 60 lbs – 100–130 kg, 45–60 lbs (progressive) – 80–130 kg
Fits: Talaria MX3/MX4/XXX/XXX Pro, SurRon LBX/LBS/L1E, E-Ride Pro S/SS 1.0/2.0, Rawrr Mantis/Mantis X, 79 Bike Falcon M/PRO/GT, Ventus One, RFN Apollo, Rerode R1, SRPNTMOTO
Does not fit: Rawrr Mantis X PRO
